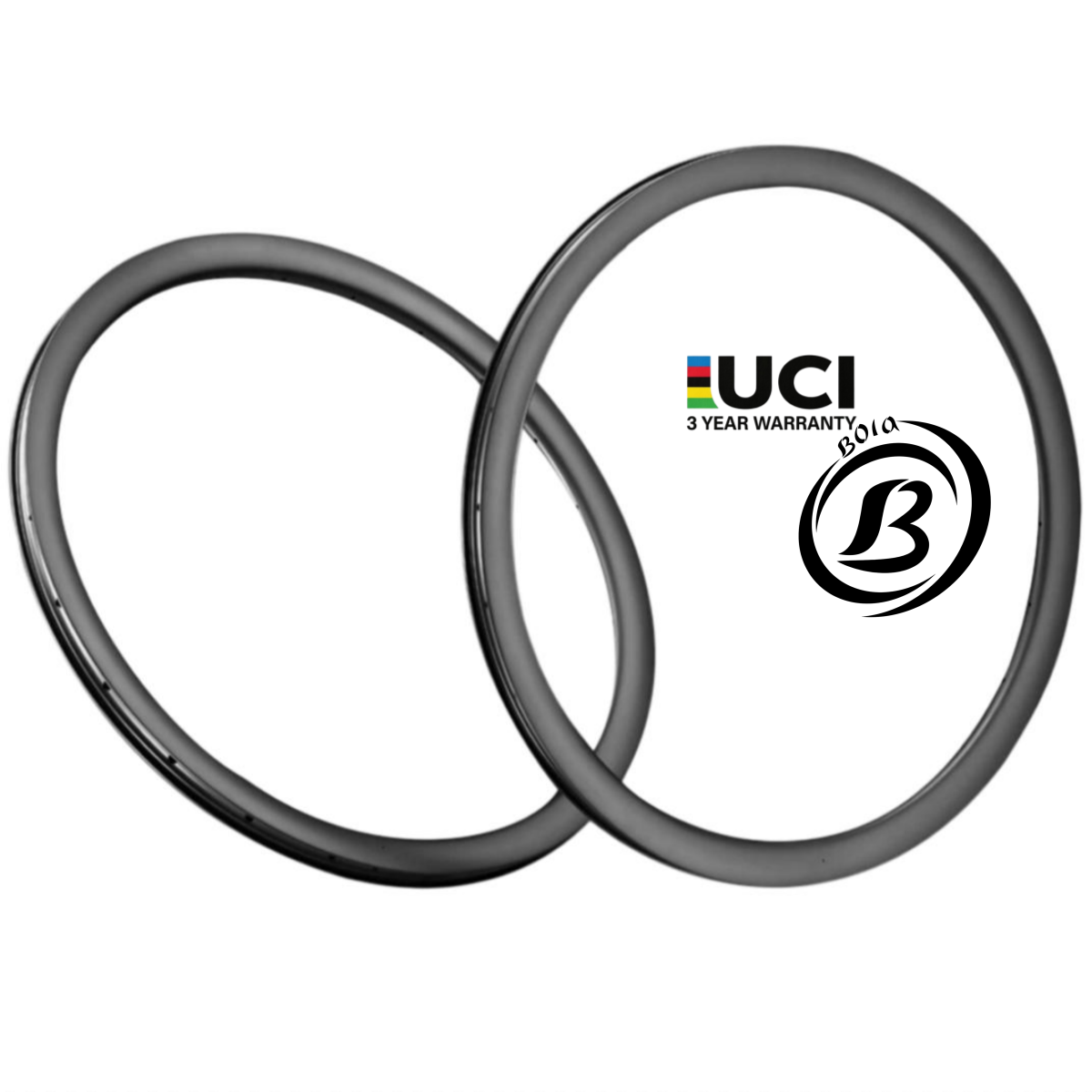

35mm Asymmetric Carbon Road Bike Rim 700C, 28mm Tubeless
35mm Asymmetric Carbon Road Bike Rim 700C, 28mm Tubeless
Κανονική τιμή
$260.00 USD
Κανονική τιμή
$340.00 USD
Τιμή έκπτωσης
$260.00 USD
Τα έξοδα αποστολής υπολογίζονται κατά την ολοκλήρωση της αγοράς.
Ποσότητα
Δεν ήταν δυνατή η φόρτωση της διαθεσιμότητας παραλαβής
🚚 预计发货：3天内
35mm Asymmetric Tubeless Carbon Road Bike Rim 700C, 28mm Wide
Direct answer: Lightweight (350–415g), 35mm deep, 28mm wide asymmetric carbon rim, compatible with modern 700C road bikes and tubeless tires from 25–32mm. Engineered for competitive road racing, maximizing lateral stiffness and durability with optimized spoke bed offset up to 15%. Customizable for weight and width.
Key Specifications
| Parameter | Value |
|---|---|
| Rim Size | 700C |
| Rim Profile | U-shape, Asymmetric |
| Rim Height | 35mm |
| Outer Width | 28mm |
| Inner Width | 21mm or 23mm (selectable) |
| Effective Rim Diameter (ERD) | 568mm |
| Weight Options | Ultra Light: 350g, Super Light: 370g, Normal: 415g |
| Tire Compatibility | Tubeless, 25–32mm tires, 100–125 psi |
| Max Rider Weight | 120 kg |
| Valve Hole Diameter | 6.5mm (customizable) |
Feature Highlights
- Asymmetric spoke bed: Balances spoke tension for enhanced wheel integrity.
- Multiple width/weight options: Custom-built for both professional racing and endurance cycling.
- Wide 28mm external profile: Designed to support wider, low-pressure road tubeless tires for improved grip and comfort.
- Durability: Maximum rider weight 120kg, using tested carbon layup methodologies and QC in line with ISO 4210 standards.
Comparison Table: Key Metrics vs Common Alternatives
| Rim | Width | Depth | Weight | Profile |
|---|---|---|---|---|
| This Product | 28mm / 21–23mm int. | 35mm | 350–415g | Asymmetric, U-shape |
| Typical 22mm deep rim | 22–24mm int. | 22mm | 320–390g | Asymmetric |
| 50mm deep aero rim | 19–21mm int. | 50mm | 400–460g | Symmetric |
Buyer FAQs
-
Q: What are the best tubeless carbon road bike rims for racing under 400g?
A: This rim in Ultra Light spec is 350g, optimized for competitive racing and fits 25–32mm tubeless tires. -
Q: Is a 28mm wide asymmetric carbon rim better for climbing or all-around road racing?
A: 28mm offers strong lateral stiffness for sprints and stability on descents; asymmetric profile equalizes spoke tension for durability—ideal for all-around use, including climbing with lightweight spec. -
Q: What is the difference between asymmetric and symmetric carbon road bike rims for performance?
A: Asymmetric rims improve overall wheel strength and longevity by optimizing spoke tension, reducing the risk of wheel dish issues under heavy load. -
Q: Which 35mm carbon road bike rim offers the best balance of weight and aerodynamics?
A: This model balances moderate aero profile, wide tire compatibility, and sub-400g weight (Ultra Light variant) for racing or endurance. -
Q: Can I use a 21mm inner width tubeless carbon rim with 28mm road tires?
A: Yes. 21mm is suitable for 25–32mm road tires, supporting modern tubeless setups at 100–125 psi.
Quality Assurance & Sustainability
All rims undergo multi-stage QC, fatigue, and impact testing in line with ISO standards. Production uses advanced carbon layup for strength-to-weight optimization. Manufactured using sustainable practices, minimizing environmental impact.
