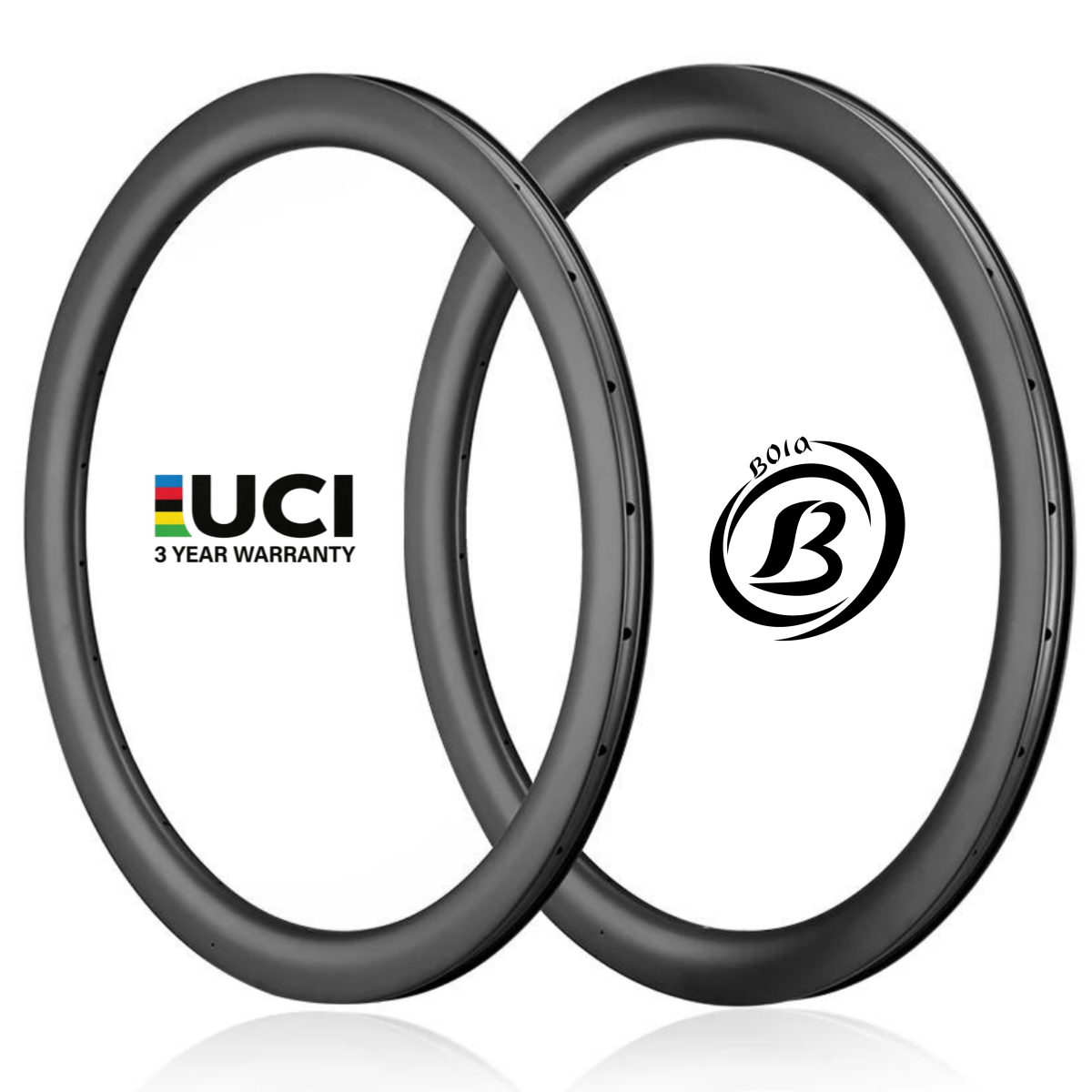

• Bola 700c 45mm Asymmetric Carbon Tubeless Rim, 28mm wide, featuring UCI logo and 3-year warranty.
  • Cross-section diagram Bola 45mm asymmetric carbon rim, showing hook/hookless bead options
  • Diagram of Bola 700c 45mm asymmetric carbon road rim, showing U-shape profile and dimensions
  • Close-up of Bola 45mm carbon rim surface texture showing unidirectional T700/T800 carbon weave
  • Bola 700c 45mm carbon rim with red logo, asymmetric tubeless model on plain background
  • Bola 700c 45mm carbon rim with white graphics, 28mm wide, road tubeless type
  • Bola asymmetric carbon rim, 45mm depth with yellow accent, for disc or rim brake builds
  • Tubeless-ready carbon road rim schematic, Bola 700c 45mm U-shape, bead profile highlighted
1 8

Carbon Fiber Sporting Goods

Bola 700c 45mm Asymmetric Carbon Tubeless Rim, 28mm Wide

Bola 700c 45mm Asymmetric Carbon Tubeless Rim, 28mm Wide

$260.00 USD
$300.00 USD $260.00 USD
Έκπτωση Εξαντλήθηκε
Τα έξοδα αποστολής υπολογίζονται κατά την ολοκλήρωση της αγοράς.

🚚 预计发货：3天内

Bola 700c 45mm Asymmetric Carbon Tubeless Rim

Direct answer: The Bola 700c 45mm asymmetric carbon tubeless rim is designed for competitive road cycling and endurance rides, offering advanced aerodynamics and weight options for custom wheel builds. Choose between hookless or hooked bead variants, 21mm or 23mm inner widths, and weights from 375g to 460g to optimize your performance and tire compatibility.

Key Features

  • Size: 700c (ISO 622)
  • Depth: 45mm (U-shape asymmetric offset)
  • Width: 28mm outer / 21mm or 23mm inner
  • Weight Options: Extreme-Light 375g, Ultra-Light 380g, Super-Light 405g, Standard 460g (± tolerances)
  • Bead Type: Hooked or Hookless (ETRTO compatible)
  • Spoke Hole: 4.5mm diameter, for disc/rim brake hubs
  • Max Rider Weight: 100kg
  • Recommended Tire Size: 25–32mm tubeless-ready (100–125 psi)
  • Material: T700/T800 unidirectional carbon fiber, epoxy matrix
  • Dynamic Balance: <3g deviation
  • Flatness Tolerance: <0.15mm; Roundness: <0.3mm
  • Warranty: 3 years
  • Certifications: ISO 622, ETRTO bead compatibility, dynamic balance and flatness tested

Comparison Table

Parameter Bola 45TR28 Typical Competitor
Profile Asymmetric, U-shape Symmetric or wave
Inner Width 21/23mm 23-25mm
Weight 375–460g 330–460g
Bead Type Hooked / Hookless Varies
Puncture Risk Low (tubeless ready) Low (tubeless ready)
Max Rider Weight 100kg 90–105kg
Certifications ISO 622 / ETRTO Stated or unspecified

FAQs

  • Q: What are the main advantages of an asymmetric rim design?
    A: Asymmetric rims balance spoke tension for increased wheel durability and reduce lateral flex in disc brake setups, compared to symmetric designs.
  • Q: When should I use hookless vs. hooked bead?
    A: Hookless beads support lower tire pressures and reduced weight; hooked beads allow a wider tire pressure and standard clinchers. Always verify tire compatibility for hookless use above 70psi.
  • Q: Is the Bola 45TR28 suitable for long distance or racing?
    A: Yes. Its low weight and aerodynamic profile make it ideal for endurance, race, and high-performance urban builds.
  • Q: How does it compare for safety at sub-400g weights?
    A: All rim weights meet ISO 622 and dynamic balance testing. Extreme-Light (375g) is best for riders ≤85kg and smooth surfaces.
  • Q: What tire sizes and pressures are supported?
    A: Designed for 25–32mm tubeless tires, up to 125psi (hooked) or 100psi (hookless as per ETRTO guidelines).
