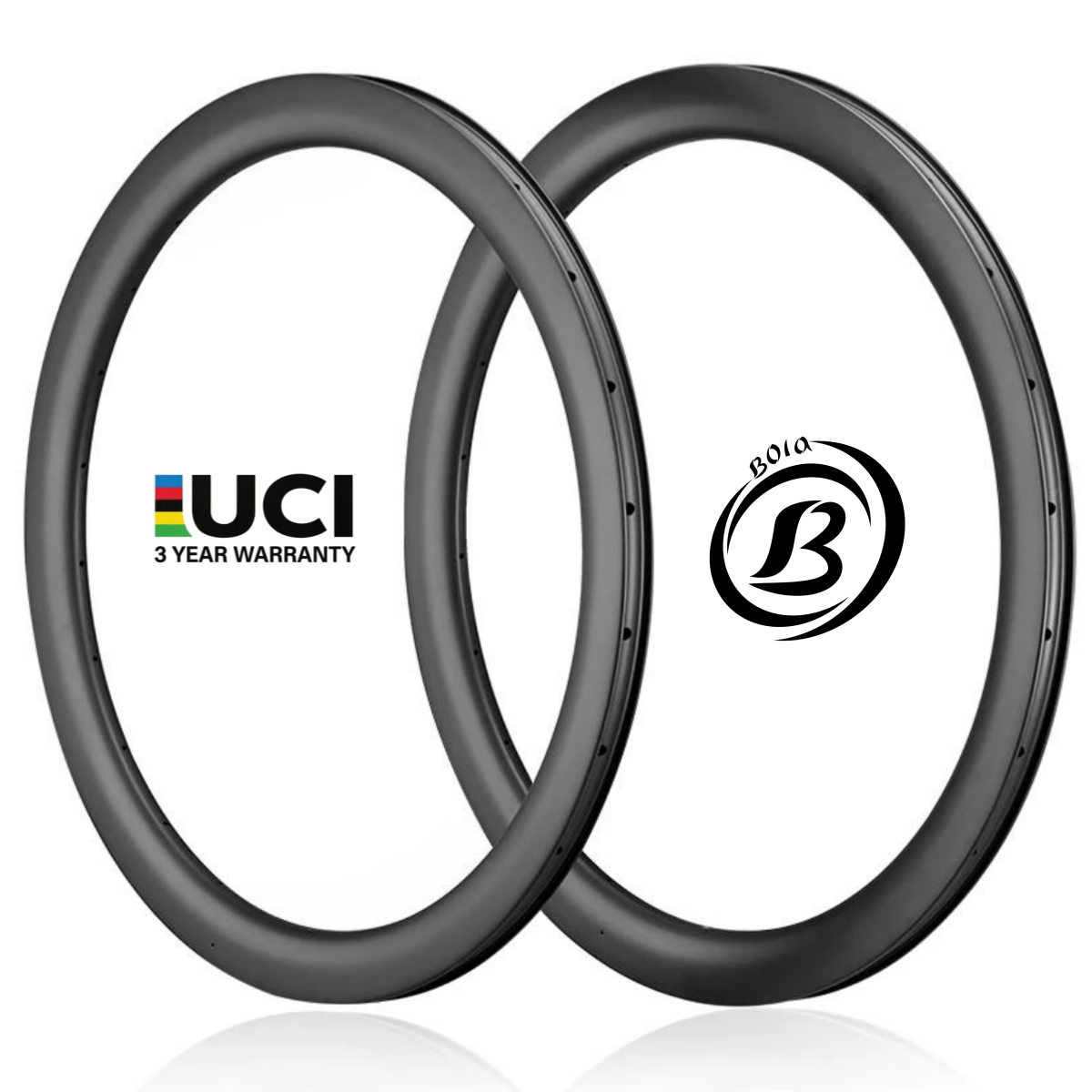

• 700c Asymmetric Carbon Clincher Rim with 38mm depth and 25mm width, featuring UCI logo and 3-year warranty.
  • Cross-section of 700c carbon clincher rim showing asymmetric offset and aerodynamic U-profile
  • Close-up detail of 25mm wide 38mm deep carbon clincher rim, highlighting material quality
  • Hooked and hookless compatible 700c carbon rim for road bike wheel builds
  • Surface texture of Toray T700/T800 carbon fiber rim, showing lightweight construction
  • 700c asymmetric carbon clincher rim, red decal customization example
  • Custom white graphic on 38mm deep carbon clincher rim for road and endurance bikes
  • 38mm asymmetric carbon clincher rim with yellow logo accent, OEM customization sample
1 8

Carbon Fiber Sporting Goods

700c Asymmetric Carbon Clincher Rim 38mm Depth, 25mm Wide

700c Asymmetric Carbon Clincher Rim 38mm Depth, 25mm Wide

$260.00 USD
$300.00 USD $260.00 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

🚚 预计发货：3天内

700c Asymmetric Carbon Clincher Rim — 38mm Depth, 25mm Wide

Answer: Precision-engineered for demanding cyclists, this 700c asymmetric carbon clincher rim combines a 38mm aerodynamic depth with a 25mm external width to maximize spoke tension balance and wide-tyre aerodynamics. Compatible with both hookless and hooked clincher tires, it supports tubeless and tube-type setups, with a weight range of 385–425g depending on option.

Context: Targeted for premium road and endurance cycling wheel builds, asymmetric drilling reduces spoke tension disparity, enhancing wheel durability—particularly for rear wheels. Built from tested Toray T700 / T800 composite, it meets advanced structural performance benchmarks (Forward Compressive Strength >300kg; Lateral Torsion >50kg; Dynamic Balance <3g; Flatness <0.15mm; Roundness <0.3mm) for professional and brand-level use.

Key Specifications

Parameter Value
Rim Diameter 700c (ISO 622)
Rim Shape U-shape (Asymmetric offset)
Rim Depth 38mm
Outer Width 25mm
Inner Width 18mm or 20mm
Effective Rim Diameter (ERD) 578mm
Weight (Superlight) 385 ± 10g
Weight (Normal) 425 ± 15g
Tyre Compatibility Hooked or hookless clincher, tubed or tubeless
Max Tyre Pressure (hooked) 125 psi
Material Toray T700 / T800 carbon composite
Warranty 3 years (structural defects)

Situational Suitability

  • Endurance/road racing: Aerodynamic 38mm profile tested for crosswind control and high-speed handling.
  • Wide tyre builds: 25mm external width supports 25–32mm tyres for enhanced grip and comfort.
  • Brand/pro team OEM: Custom drilling and weight options for tailored use-case optimization.

Comparative Table — 38mm Carbon Clincher Rims

Model Internal Width Weight Offset Tubeless?
This Product 18/20mm 385–425g Asymmetric Yes
D21-38 21mm 380–410g Symmetric Yes
R18-38 18mm 470g Symmetric Yes

Frequently Asked Questions

  • Q: What are the advantages of an asymmetric 700c carbon rim?
    A: Improves spoke tension balance for increased durability and reliability, especially for rear wheel builds.
  • Q: How does hookless vs. hooked compatibility affect tire setup?
    A: Hookless is preferred for tubeless with lower pressures; hooked supports higher pressures and standard clinchers.
  • Q: Is this rim suitable for endurance or racing wheel builds?
    A: Yes, optimally tested for both applications. Choose weight options based on use-case priorities.
  • Q: What is the recommended tyre size?
    A: Best performance with 25–32mm wide road tires, both tubeless and tubed.
  • Q: Are custom drilling/hole patterns available?
    A: Yes, to suit various spoke types and lacing patterns for professional wheel builders.
Просмотреть всю информацию
