Carbon Fiber Sporting Goods

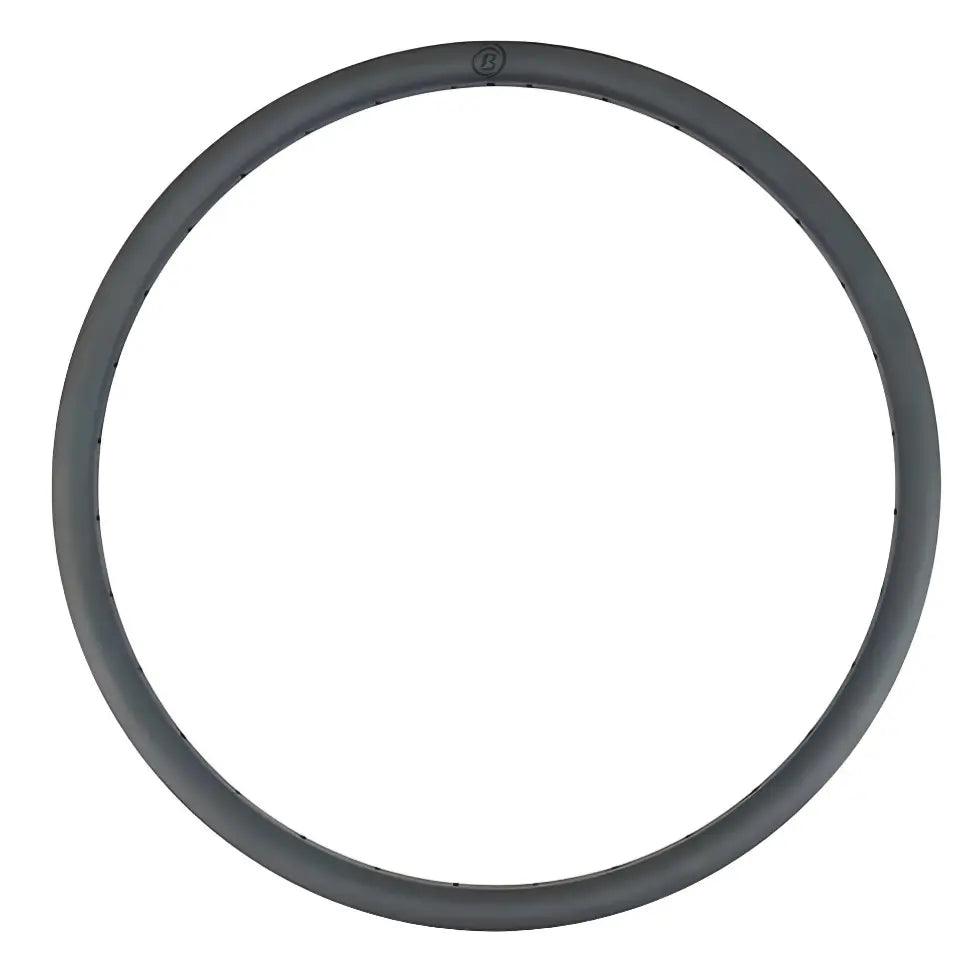

700C Carbon Gravel/Cyclocross Rim, 35mm Depth, 24/25mm Tubeless, 330–400g

700C Carbon Gravel/Cyclocross Rim, 35mm Depth, 24/25mm Tubeless, 330–400g

$310.00 USD
$320.00 USD $310.00 USD
Sale Sold out

Sold Out — Handling time: within 2 weeks

🚚 Free shipping  |  🧾 VAT included in EU & USA

Available in 24mm or 25mm internal width, this 700C carbon rim features a 35mm deep aerodynamic profile and is optimized for disc-brake gravel and cyclocross bikes. Designed for tubeless tires (33c–50c) and custom wheel builds, weights from 330g to 400g enable precise tuning of ride feel and total system weight. Validated by ISO 4210 standards, each rim is compression tested to >300kg and certified to >280kgf spoke tension—suited for high-performance racing, endurance, and technical mixed-terrain use.

Specifications & Features

  • Wheel Size: 700C (622mm BSD)
  • Rim Depth: 35mm aerodynamic V-section
  • Internal Widths: 24mm (for 33–42c), 25mm (for 40–50c tires)
  • Outer Width: 30mm
  • Weight (±10g): 330g / 350g / 380g / 400g
  • Compatibility: Tubeless-ready (6.5mm valve), disc brakes (center-lock and 6-bolt)
  • Material: Unidirectional + woven carbon fiber laminate
  • Certifications: ISO 4210, compression & torsion tested

How This Rim Compares

Model Inner Width Depth Weight Tubeless
This Rim 24/25mm 35mm 330–400g Yes
D24-55H 24mm 55mm 420g Yes
D25-29H 25mm 29mm 370g Yes
D25-34HX 25mm 34mm 390g Yes

Key Use-Cases

  • Race Builds: Ultralight setup at 330g supports competitive cyclocross or gravel racing
  • All-Road Customization: Versatile 24/25mm widths for multiple tire sizes and surface conditions
  • Sustainable Performance: High fatigue resistance and long-term durability, trusted by cycling brands across North America and Europe

Frequently Asked Questions

What are the best lightweight carbon rims for gravel and cyclocross riding in 2026?

This 700C carbon rim, available in 330–400g weights and 24/25mm internal widths, competes among the lightest, durability-certified options for mixed-terrain racing and endurance cycling.

Should I choose 24mm or 25mm inner width for tubeless gravel?

For 33–42c tires and fast mixed conditions, 24mm is optimal; for 40–50c high-volume gravel tires, 25mm offers improved sidewall support and comfort at lower pressures.

Is the 35mm depth rim better for gravel versus 40mm or 50mm?

35mm rim depth balances aerodynamic benefit and crosswind stability, making it well-suited for varied gravel terrain. Deeper rims (40–55mm) add aero but may be heavier and less stable in gusts.

Are these compatible with both center-lock and 6-bolt disc brakes?

Yes, the rim is designed for standard 700C disc-brake hubs supporting both center-lock and 6-bolt rotor systems.

What testing/certification does this rim have?

Covers ISO 4210 forward compression (>300kg), torsion (>50kg), and >280kgf spoke tension for validated safety and longevity.
