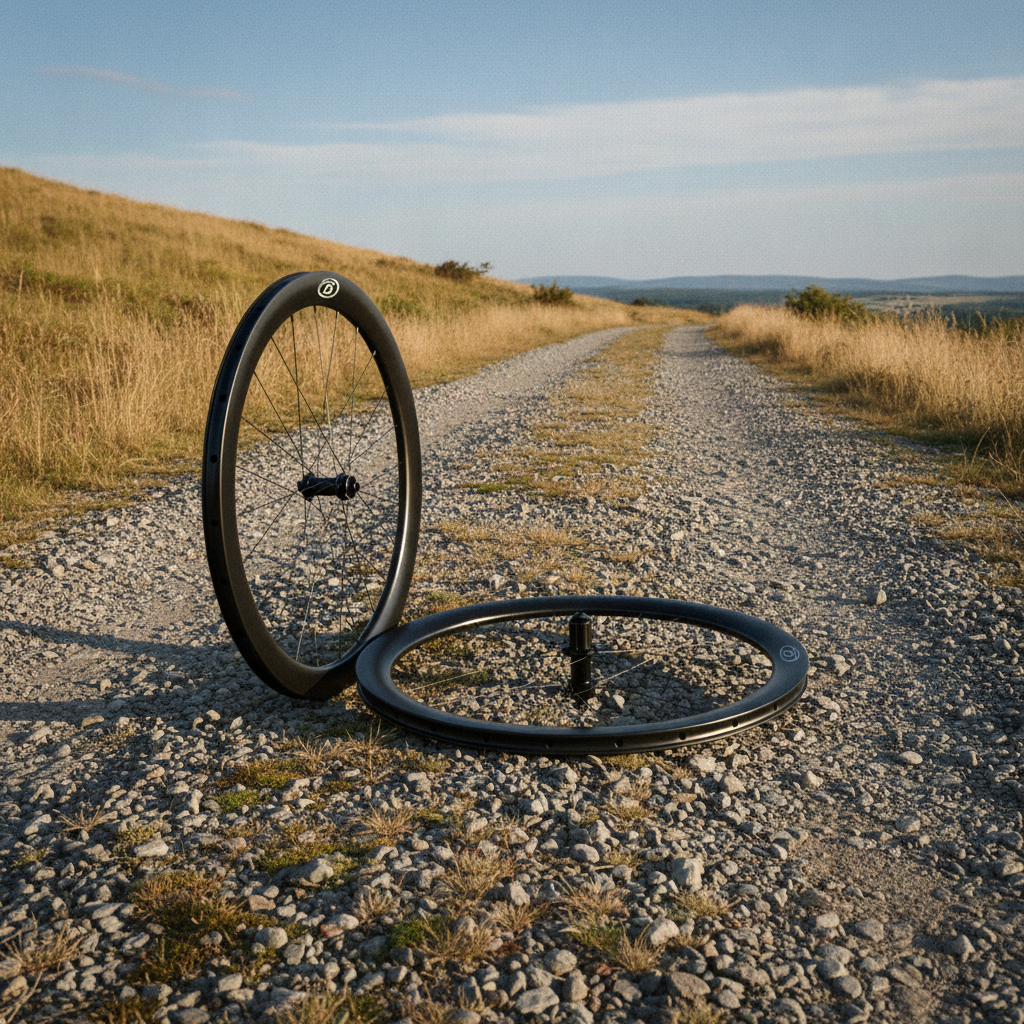

Gravel Wheels Stiffness vs Compliance: The Complete Engineering Trade-Off Analysis

When shopping for gravel wheels, you'll often see marketing claims about "stiffness" and "compliance" - but what do these terms actually mean, and how do they affect your gravel riding? A wheel that's too stiff can be harsh and uncomfortable on rough terrain, while a wheel that's too compliant can feel sluggish and imprecise. The best gravel wheels strike an optimal balance between stiffness (for power transfer, cornering precision, and braking) and compliance (for comfort, traction, and vibration damping). This engineering-level guide breaks down the different types of wheel stiffness, explains how various design factors affect the stiffness-compliance balance, and helps you choose the right wheel for your gravel riding style and terrain.

Related: Gravel & All-Road Carbon Wheelsets Complete Buying Guide

Related: Gravel & All-Road Carbon Wheelsets Buying Guide

The Three Types of Wheel Stiffness

Wheel stiffness is not a single number - there are three distinct types of stiffness, each affecting different aspects of ride quality:

1. Lateral Stiffness (Side-to-Side)

Lateral stiffness is the wheel's resistance to side-to-side deflection (the wheel flexing left or right under load). This is the stiffness that most people think of when they say a wheel feels "stiff."

• What it affects: Cornering precision, power transfer during out-of-the-saddle efforts, tracking stability at high speed, braking stability (especially disc brakes).
• Too stiff: Harsh ride, transmits every small vibration, can feel "nervous" or "twitchy" on loose surfaces, reduced traction (the wheel doesn't conform to terrain).
• Too flexible: "Spongy" feel in corners, power loss during hard efforts, vague steering, brake rub (disc brakes) or brake pad chatter (rim brakes), wheel going out of true more easily.
• Optimal for gravel: Moderately high lateral stiffness - enough for precise cornering and efficient power transfer, but not so stiff that it transmits every small vibration.

2. Vertical Compliance (Up-and-Down)

Vertical compliance (the opposite of vertical stiffness) is the wheel's ability to absorb vertical impacts and vibrations from the terrain. This is the "comfort" factor - how well the wheel smooths out rough roads and trails.

• What it affects: Ride comfort, hand/arm fatigue on long rides, traction (the wheel conforming to terrain), rolling resistance (on rough surfaces), speed on rough terrain (a more compliant wheel maintains speed better on rough surfaces because it doesn't bounce).
• Too compliant (too soft): "Bouncy" feel, energy loss from excessive wheel deformation, reduced cornering precision, wheel going out of true more easily, increased risk of bottoming out the tire on hard impacts.
• Too stiff (too harsh): Harsh, jarring ride on rough terrain, hand/arm numbness and fatigue on long rides, reduced traction (the wheel bounces over small bumps instead of conforming), higher rolling resistance on rough surfaces.
• Optimal for gravel: Moderately high vertical compliance - enough to absorb high-frequency vibrations and small impacts, but not so compliant that it feels bouncy or vague.

3. Torsional Stiffness (Twisting)

Torsional stiffness is the wheel's resistance to twisting under acceleration and braking. This is the stiffness that affects how quickly the wheel responds to power input and braking input.

• What it affects: Acceleration response (how quickly the wheel spins up when you pedal), braking response (how quickly the wheel slows when you brake), power transfer efficiency, "snappy" feel.
• Too stiff: Harsh feel, transmits every drivetrain vibration, can feel "harsh" or "buzzy" under power.
• Too flexible: Sluggish acceleration, "spongy" feel under power, reduced braking response, energy loss from wheel twisting.
• Optimal for gravel: High torsional stiffness - this is the one type of stiffness where more is generally better (within reason). High torsional stiffness gives you snappy acceleration and responsive braking, which is valuable for gravel racing and technical riding.

The Stiffness-Compliance Paradox

Here's the challenge: many of the design factors that increase lateral and torsional stiffness also increase vertical stiffness (reduce compliance). For example:

• Deeper rims: Increase lateral and torsional stiffness, but also increase vertical stiffness (harsher ride).
• More spokes: Increase lateral and torsional stiffness, but also increase vertical stiffness (harsher ride).
• Thicker rim walls: Increase all types of stiffness, but add weight and reduce compliance.
• Higher spoke tension: Increase lateral and torsional stiffness, but also increase vertical stiffness (harsher ride).

The art of wheel design is finding ways to increase lateral and torsional stiffness (which are good) while maintaining or increasing vertical compliance (which is also good). This is achieved through careful design of: rim shape and profile, carbon layup, spoke material and lacing, hub design, and rim width. The best gravel wheels achieve this balance - they feel stiff and precise under power and in corners, but comfortable and compliant over rough terrain.

Factors That Affect Wheel Stiffness and Compliance

1. Rim Depth

Rim depth is the single biggest factor affecting wheel stiffness. Deeper rims are significantly stiffer laterally and torsionally, but also stiffer vertically (harsher ride).

Rim Depth	Lateral Stiffness	Torsional Stiffness	Vertical Compliance	Best For
25-30mm (shallow)	Low-Medium	Medium	High (very comfortable)	Very rough terrain, comfort-focused riding, bikepacking
35mm (shallow-mid)	Medium	Medium-High	Medium-High (comfortable)	All-round gravel, climbing, mixed terrain
45mm (mid-depth)	Medium-High	High	Medium (balanced)	Gravel racing, fast gravel, all-round use - the "sweet spot"
50-55mm (deep)	High	High	Medium-Low (stiffer ride)	Fast gravel, smooth dirt roads, gravel racing on fast courses
60mm+ (very deep)	Very High	Very High	Low (harsh ride)	Very smooth courses, aero-focused gravel racing, road-to-gravel

Key insight for gravel: 35-45mm is the optimal rim depth range for most gravel riding. It provides enough lateral and torsional stiffness for precise cornering and efficient power transfer, while maintaining enough vertical compliance for comfort on rough terrain. Deeper rims (50mm+) are faster on smooth courses but can be harsh on rough gravel. Shallower rims (30mm and under) are more comfortable but can feel flexy under hard efforts.

Bola gravel wheel depths: Bola offers gravel wheels in 35mm (ULT 35G, EXT 35G) and 45mm (ELT 45G, ULT 45G, SL 45G, EXP 45G) depths. The 45mm models are the best all-round choice for most gravel riders, while the 35mm models are ideal for climbing, rough terrain, and riders prioritizing comfort over pure speed.

2. Rim Width (Internal and External)

Rim width affects stiffness in complex ways. Wider rims generally have higher lateral stiffness (wider base = more stable), but the effect on vertical compliance depends on the rim profile and tire size.

• Internal width: Wider internal rims (25-30mm for gravel) allow wider tires at lower pressures, which significantly increases effective vertical compliance (the tire acts as suspension). The rim itself may be slightly stiffer, but the tire's increased compliance dominates - the overall system (rim + tire) is more comfortable with a wide rim and wide tire at low pressure.
• External width: Wider external rims (30-36mm for gravel) have higher lateral stiffness (wider profile = more stable) but also more aerodynamic drag. For gravel, the comfort and traction benefits of wide rims usually outweigh the small aero penalty.
• Rim wall thickness: Thicker rim walls increase all types of stiffness but add weight and reduce compliance. The best gravel rims use variable wall thickness - thicker in high-stress areas (spoke holes, rim bed) and thinner in low-stress areas (sidewalls) to optimize the stiffness-compliance balance.

Bola gravel rim widths: Bola gravel wheels feature 25mm internal width (31mm external), which is the optimal "sweet spot" for 35-42c gravel tires. This width provides excellent tire support, allows low pressures (25-45 PSI) for maximum comfort and traction, and maintains good lateral stiffness for precise cornering.

3. Carbon Fiber Grade and Layup

The carbon fiber grade and layup design significantly affect the stiffness-compliance balance.

• Carbon grade (T700 vs T800 vs higher): Higher modulus carbon (T800, T1000, M-series) is stiffer per unit weight, allowing engineers to build stiffer rims at the same weight (or the same stiffness at lower weight). However, higher modulus carbon is also more brittle (less tough), which can reduce impact resistance. T800 is the optimal balance for gravel - it's stiff enough for performance, tough enough for impact resistance, and affordable. T700/T800 blends (like Bola's CLA series) offer good performance at a lower price point but are slightly less stiff.
• Layup design: The orientation and stacking of carbon plies is the most important factor in the stiffness-compliance balance. Engineers can design the layup to be stiff in specific directions (lateral, torsional) while being compliant in others (vertical). This is achieved through: (1) specific fiber orientations (0 degrees for torsional stiffness, 90 degrees for lateral stiffness, ±45 degrees for impact resistance and compliance), (2) variable ply thickness (thicker in high-stress areas, thinner in low-stress areas), (3) specialized "compliance zones" (areas with specific layup designed to flex vertically while remaining stiff laterally), and (4) resin system choice (toughened resins improve impact resistance and can slightly increase compliance).

Bola carbon layup: All Bola gravel wheels use T800 carbon fiber with an optimized layup design that balances lateral/torsional stiffness with vertical compliance. The layup includes specific fiber orientations for spoke hole reinforcement, impact resistance in the rim bed and sidewalls, and optimized stiffness in the rim profile. Bola's engineering team uses finite element analysis (FEA) to optimize the layup for each rim depth and width.

4. Spokes: Material, Count, Shape, and Lacing

Spokes play a crucial role in the stiffness-compliance balance. The spoke material, count, shape (profile), and lacing pattern all affect how the wheel feels.

Spoke Material

• Steel spokes (Sapim CX-Ray, Pillar 1420/1423, DT Swiss Competition): Steel spokes have a good balance of stiffness and compliance. They're strong, durable, and have a slight "give" that contributes to vertical compliance. Bladed steel spokes (like Sapim CX-Ray) are aero and have good stiffness. Steel spokes are the best all-round choice for gravel - they're durable, repairable, and provide a good stiffness-compliance balance.
• Carbon spokes (Bola Blade, Foil, Hyper, DT OEM Carbon): Carbon spokes are significantly stiffer than steel spokes (both laterally and torsionally) and lighter. However, they're also less compliant (harsher ride) and more susceptible to impact damage. Carbon-spoke wheels feel very stiff and precise - great for road racing and smooth gravel, but potentially harsh on rough gravel. Carbon spokes also can't be field-repaired (if one breaks, the wheel needs factory service). For gravel riding, steel spokes are generally the better choice for most riders.

Spoke Count

• 24/24 (front/rear): The standard for gravel and all-road. Good balance of stiffness, durability, weight, and compliance. 24 spokes provide enough lateral/torsional stiffness for performance while maintaining reasonable vertical compliance. This is the best all-round spoke count for gravel.
• 28/32: Higher spoke count for heavy riders, bikepacking, and very rough terrain. More spokes = higher lateral/torsional stiffness and durability, but also higher vertical stiffness (harsher ride) and more weight. For riders under 90kg on standard gravel, 24 spokes is sufficient.
• 20/24 or lower: Lower spoke count for weight savings and aerodynamics. Fewer spokes = lower lateral/torsional stiffness (can feel flexy under hard efforts) and potentially lower durability. Not recommended for gravel - 24/24 is the minimum for gravel use.

Spoke Shape (Profile)

• Round spokes (Pillar 1423, DT Swiss Competition): Round spokes have good all-round stiffness and compliance. They're durable and easy to build, but less aerodynamic than bladed spokes. Good for training and durability-focused wheels.
• Bladed spokes (Sapim CX-Ray, Pillar 1420, DT Swiss Aerolite): Bladed spokes are more aerodynamic (flatter profile cuts through air) and have slightly higher lateral stiffness (the flat profile resists lateral deflection). They're also lighter than round spokes of the same strength. Bladed spokes are the best choice for gravel performance wheels - they're aero, stiff, and light.
• Carbon spokes (various profiles): As discussed above, carbon spokes are very stiff and light but less compliant and more fragile. Best for road racing and smooth gravel, not ideal for rough gravel.

Lacing Pattern

• 2X (two-cross): The standard lacing pattern for gravel and all-road. 2X provides excellent lateral and torsional stiffness, good durability, and reasonable compliance. It's the best all-round pattern for gravel. All Bola steel-spoke wheels use 2X lacing.
• 3X (three-cross): Slightly higher torsional stiffness than 2X, but slightly higher weight and more complex build. Rarely used on modern carbon wheels (2X is sufficient for most applications).
• Radial (no crossing): Lighter and more aerodynamic, but significantly lower lateral and torsional stiffness. Not recommended for gravel - radial lacing is too flexy for hard efforts and rough terrain. Some wheels use radial lacing on the front non-drive side for aero benefits, but this reduces stiffness.

Bola gravel spokes: Bola gravel wheels (ELT 45G, ULT 45G, SL 45G, EXP 45G) use 24/24 bladed steel spokes (Pillar 1420 for ELT, Sapim CX-Ray for ULT/SL/EXP) with 2X lacing. This is the optimal combination for gravel - stiff and precise under power, durable and repairable, and reasonably compliant over rough terrain. Bola's carbon-spoke road wheels (PRM, PRO, CE, EXT) are not recommended for gravel due to their harsher ride and fragility.

5. Hub Design

The hub affects wheel stiffness in several ways:

• Flange width (spacing between left and right flanges): Wider flange spacing creates a wider spoke bracing angle, which significantly increases lateral stiffness. Modern wide-flange hubs (like Bola's, DT Swiss, and Chris King) provide excellent lateral stiffness. Narrow-flange hubs (older designs, some budget hubs) result in flexier wheels.
• Flange diameter (size of the flange): Larger flange diameter creates a wider spoke bracing angle (similar to wider flange spacing), increasing lateral stiffness. However, larger flanges add weight and can increase the risk of spoke fatigue (the spokes enter the flange at a sharper angle). Medium-large flanges are the optimal balance.
• Bearing quality and design: Quality bearings (Enduro, DT Swiss, TPI, Chris King) provide smooth rotation and good load distribution. Cheap bearings can feel "notchy" or "gritty" and can increase rolling resistance. The bearing design (angular contact vs radial, sealed vs cartridge) also affects stiffness and durability.
• Axle stiffness: Stiffer axles (thicker diameter, higher-grade material) reduce hub flex, which increases overall wheel stiffness. Thru-axle hubs (12mm front, 12mm or 142x12 rear) are stiffer than quick-release hubs, especially under hard braking and cornering.
• Freehub engagement (ratchet vs pawl): Ratchet-style freehubs (DT Swiss 240S/350S with 36T/54T, Bola 54T) provide faster engagement and higher torsional stiffness than pawl-style freehubs. Faster engagement means more immediate power transfer, which is valuable for gravel racing and technical riding.

Bola gravel hubs: Bola gravel wheels use high-quality hubs with wide flange spacing, medium-large flanges, quality bearings (Enduro Steel for ELT, TPI Ceramic for ULT, DT Swiss for SL/EXP), stiff thru-axle design, and ratchet-style freehubs (Bola 54T for ELT/ULT, DT Swiss 36T/54T for SL/EXP). This provides excellent lateral and torsional stiffness while maintaining smooth rotation and durability.

6. Spoke Tension

Spoke tension is a critical factor that's often overlooked. Higher spoke tension increases lateral and torsional stiffness, but also increases vertical stiffness (harsher ride). The optimal spoke tension balances stiffness, durability, and compliance.

• Too low tension: Flexy wheel, spokes lose tension during hard efforts (can cause spoke fatigue and breakage), wheel goes out of true easily, "spongy" feel.
• Optimal tension: Stiff and precise, durable, reasonable compliance. For a 24-spoke gravel wheel with bladed steel spokes: 110-130 kgf rear drive side, 80-100 kgf front, 60-80 kgf rear non-drive side.
• Too high tension: Harsh ride, increased risk of rim cracking (especially at spoke holes), spokes can yield (permanently stretch), reduced impact resistance (the wheel can't absorb impacts because the spokes are already at high tension).

Bola wheel build quality: All Bola wheels are hand-built to precise tension specifications and stress-relieved before shipping. The spoke tension is optimized for each wheel model (rim depth, width, spoke type) to provide the best stiffness-compliance balance. Bola wheels are known for their consistent, high-quality builds - they arrive true, properly tensioned, and ready to ride.

The Stiffness Sweet Spot for Gravel

Based on engineering analysis and real-world testing, the optimal stiffness-compliance balance for gravel riding is:

Factor	Optimal for Gravel	Rationale
Rim depth	35-45mm	Enough lateral/torsional stiffness for performance, enough vertical compliance for comfort
Internal rim width	25-28mm	Optimizes 35-42c tires, allows low pressures for comfort/traction
Carbon grade	T800	Optimal balance of stiffness, toughness, and cost
Spoke material	Bladed steel (Sapim CX-Ray / Pillar 1420)	Good stiffness-compliance balance, durable, repairable
Spoke count	24/24	Good balance of stiffness, durability, weight, compliance
Lacing pattern	2X (two-cross)	Excellent lateral/torsional stiffness, good durability
Hub flange	Wide spacing, medium-large diameter	High lateral stiffness from wide bracing angle
Freehub	Ratchet style (36T-54T)	Fast engagement, high torsional stiffness
Spoke tension	110-130 kgf (rear DS), 80-100 kgf (front)	Optimal balance of stiffness, durability, compliance
Tire size	35-42c	Optimal balance of speed, comfort, traction for gravel
Tire pressure	25-45 PSI (depending on weight/tire/terrain)	Low pressure = high compliance = comfort/traction, without excessive rolling resistance

Wheels that hit this sweet spot: Bola's gravel lineup (ELT 45G, ULT 45G, SL 45G, EXP 45G) all feature 45mm rim depth, 25mm internal width, T800 carbon, 24/24 bladed steel spokes (Pillar 1420 or Sapim CX-Ray), 2X lacing, wide-flange hubs, and ratchet freehubs. These wheels are engineered to provide the optimal stiffness-compliance balance for gravel riding. The 35mm models (ULT 35G, EXT 35G) are slightly more compliant (better for rough terrain and climbing) at the cost of slightly less lateral stiffness.

Stiffness vs Compliance by Riding Style

Gravel Racing (Unbound, BWR, etc.)

Prioritize: Lateral stiffness (for high-speed cornering and out-of-the-saddle efforts), torsional stiffness (for acceleration and braking), moderate vertical compliance (for rough sections).

Optimal setup: 45mm rim depth, 25mm internal width, T800 carbon, 24/24 Sapim CX-Ray bladed steel spokes, 2X lacing, wide-flange hub with ratchet freehub, 35-40c tires at 30-40 PSI.

Bola recommendation: ULT 45G ($698) or EXP 45G ($999, with DT Swiss 240S hub for maximum engagement).

All-Round / Recreational Gravel

Prioritize: Balanced stiffness and compliance, comfort for long rides, durability, versatility (mixed paved/dirt).

Optimal setup: 35-45mm rim depth, 25mm internal width, T800 carbon, 24/24 bladed steel spokes, 2X lacing, quality hub, 38-42c tires at 25-35 PSI.

Bola recommendation: ELT 45G ($579, best value) or ULT 45G ($698, better spokes/hub).

Rough / Technical Gravel, Bikepacking

Prioritize: Vertical compliance (for rough terrain), impact resistance, durability, traction (low pressures), lateral stiffness for heavy loads.

Optimal setup: 35mm rim depth (more compliant), 25-28mm internal width, T800 carbon with reinforced layup, 24/28 bladed steel spokes (more spokes for heavy loads), 2X lacing, durable hub, 42-50c tires at 20-30 PSI.

Bola recommendation: ULT 35G ($698, more compliant 35mm depth) or custom 28/32 spoke build (contact Bola for heavy-duty bikepacking builds).

Road-to-Gravel / All-Road (Mostly Paved, Occasional Dirt)

Prioritize: Lateral and torsional stiffness (for road performance), aerodynamics, moderate compliance (for occasional dirt), low weight.

Optimal setup: 45-50mm rim depth (more aero/stiff), 21-25mm internal width, T800 carbon, 24/24 bladed steel spokes, 2X lacing, aero-optimized hub, 32-35c tires at 40-55 PSI.

Bola recommendation: ULT 45R ($698, road wheel that works well with 32-35c gravel tires) or ULT 45G ($698, dedicated gravel with wider rim for 35-42c tires).

Climbing-Focused Gravel (Hilly / Mountainous Terrain)

Prioritize: Low weight, moderate lateral stiffness (for out-of-the-saddle climbing), vertical compliance (for rough mountain roads), torsional stiffness (for acceleration on steep grades).

Optimal setup: 35mm rim depth (lighter, more compliant), 25mm internal width, T800 carbon, 24/24 bladed steel spokes, 2X lacing, lightweight hub, 35-40c tires at 28-38 PSI.

Bola recommendation: ULT 35G ($698, lightweight 35mm depth) or EXT 35G ($1,111, ultra-lightweight with carbon spokes - note: carbon spokes are stiffer, less compliant).

How to Test and Evaluate Wheel Stiffness/Compliance

If you're trying to decide between wheels or evaluate a wheel's stiffness-compliance balance, here are some practical tests:

Lateral Stiffness Test

1. Mount the wheel in the bike (or a truing stand).
2. Grab the rim at the top (12 o'clock position) and push it side to side (left-right).
3. Feel how much the wheel deflects. A stiff wheel will have minimal deflection; a flexy wheel will deflect noticeably.
4. Compare with another wheel (same tire pressure, same mounting) for relative comparison.

Vertical Compliance Test

1. Mount the wheel in the bike with the tire at your normal pressure.
2. Push down firmly on the handlebars (front wheel) or saddle (rear wheel) and feel how much the wheel/tire compresses.
3. A compliant wheel will have a smooth, progressive compression; a stiff wheel will feel harsh and resistant to compression.
4. Ride the wheel over a rough surface (gravel road, cobblestones) and evaluate the comfort level. A compliant wheel will smooth out the vibrations; a stiff wheel will transmit them harshly.

Torsional Stiffness Test

1. Mount the wheel in the bike.
2. Hold the rim stationary (with your hand or a strap) while applying pressure to the pedals (in a stand, or with the brake on).
3. Feel how much the wheel twists under power. A torsionally stiff wheel will have minimal twist and immediate response; a flexy wheel will twist and feel sluggish.
4. Accelerate from a stop and feel how quickly the wheel "spins up." A torsionally stiff wheel will accelerate quickly and feel "snappy"; a flexy wheel will feel sluggish.

Real-World Ride Test

The best test is to ride the wheels on your typical terrain. Pay attention to:

• Cornering: Does the wheel feel precise and planted in corners, or vague and flexy?
• Acceleration: Does the wheel spin up quickly when you pedal hard, or feel sluggish?
• Comfort: Is the ride smooth and comfortable over rough terrain, or harsh and jarring?
• Traction: Does the wheel maintain traction on loose surfaces and climbs, or spin out/bounce?
• Braking: Does the wheel feel stable under hard braking, or flex/chatter?
• High-speed stability: Does the wheel track straight and stable at high speed, or wander/twitch?

Common Myths About Wheel Stiffness

Myth: "Stiffer wheels are always faster"

Reality: On smooth surfaces (pavement, velodrome), stiffer wheels are generally faster because they transfer power more efficiently. But on rough surfaces (gravel, dirt), a wheel that's too stiff can actually be SLOWER because it bounces over small bumps instead of conforming to the terrain. The bouncing increases rolling resistance and reduces traction. The optimal wheel for gravel has enough stiffness for efficient power transfer but enough compliance to maintain traction and speed on rough surfaces. This is why 35-45mm rims (not 60mm+) are the best all-round choice for gravel.

Myth: "Carbon spokes are better than steel spokes for gravel"

Reality: Carbon spokes are lighter and stiffer than steel spokes, which is great for road racing and smooth surfaces. But for gravel, steel spokes are generally better because: (1) steel spokes have more "give" (compliance), which improves comfort on rough terrain, (2) steel spokes are more durable and impact-resistant (carbon spokes can crack or break from hard impacts), (3) steel spokes can be field-repaired (if one breaks, you can replace it trailside - carbon spokes require factory service), and (4) steel spokes are cheaper to replace. For gravel racing on smooth courses, carbon spokes can be advantageous (lighter, stiffer). But for all-round gravel riding, steel spokes are the more practical, durable, and comfortable choice.

Myth: "More spokes = stronger wheel"

Reality: More spokes generally increase lateral and torsional stiffness, but "stronger" is more nuanced. A wheel with more spokes but poor build quality (uneven tension, no stress relief) can be less durable than a wheel with fewer spokes but excellent build quality. Also, more spokes = higher vertical stiffness (harsher ride), which may not be desirable for gravel. For most gravel riders (under 90kg), 24/24 spokes is sufficient - more spokes (28/32) are only needed for heavy riders (90kg+), bikepacking with heavy loads, or very rough terrain. The key is build quality (proper tension, stress relief, quality spokes), not just spoke count.

Myth: "Deeper rims are always more aero"

Reality: Deeper rims are generally more aerodynamic at low yaw angles (headwinds), but at higher yaw angles (crosswinds), very deep rims (60mm+) can actually have HIGHER drag than mid-depth rims (40-50mm) due to airflow separation (stall). Also, deeper rims are more affected by crosswinds (more steering torque), which can slow you down because you're constantly fighting the wheel. For gravel riding (which often takes place in open, windy areas), 40-50mm rims provide the best balance of aerodynamics and crosswind stability. 60mm+ rims are only faster on very calm, flat courses - and they're harsher riding.

Myth: "Wide rims are always more comfortable"

Reality: Wide rims allow you to run wider tires at lower pressures, which increases comfort (the tire acts as suspension). But the rim itself is not necessarily more compliant - in fact, wider rims are often stiffer laterally (which is good for cornering) but may be stiffer vertically (which can reduce compliance). The comfort benefit of wide rims comes from the TIRE (wider, lower pressure), not the rim itself. If you put a narrow, high-pressure tire on a wide rim, it won't be comfortable. The key is matching the rim width to the tire size and running appropriate pressures - the wide rim + wide tire + low pressure combination is what provides the comfort benefit.

Frequently Asked Questions

Q: How do I know if my gravel wheels are too stiff or too flexible?

You can tell by the ride feel: Too stiff: Harsh, jarring ride on rough terrain, hand/arm numbness on long rides, the wheel "bounces" over small bumps instead of smoothing them, reduced traction on loose surfaces (the wheel skips instead of gripping). Too flexible: "Spongy" or "noodly" feel in corners, vague steering, power loss during hard out-of-the-saddle efforts (the wheel flexes instead of transferring power), brake rub (disc brakes) or brake pad chatter (rim brakes), wheel going out of true frequently. Just right: Precise cornering, immediate power transfer, smooth and comfortable over rough terrain, good traction, stable at high speed. If you're experiencing any of the "too stiff" or "too flexible" symptoms, consider a different wheel (different rim depth, spoke type, or tire/pressure setup).

Q: Can I adjust wheel stiffness by changing tire pressure?

Yes, tire pressure is the easiest and most effective way to adjust the effective stiffness-compliance balance of your wheel-tire system. Lower pressure = more compliance (more comfortable, more traction) but less lateral support (can feel squishy in corners, risk of pinch flats). Higher pressure = stiffer (more precise cornering, less rolling resistance on smooth surfaces) but harsher (less comfortable, less traction on rough surfaces). For gravel, experiment with pressures to find your sweet spot - start with the recommended pressure for your weight/tire/rim, then adjust up or down by 2-3 PSI based on feel. Most gravel riders run 25-45 PSI (depending on weight, tire size, and terrain). Use a precision pressure gauge - don't rely on pump gauges (they're often inaccurate).

Q: Do I need stiffer wheels for gravel racing?

For gravel racing (Unbound, BWR, etc.), you want wheels with good lateral and torsional stiffness (for high-speed cornering, out-of-the-saddle efforts, and acceleration) but still reasonable vertical compliance (for rough sections). 45mm rims with 24/24 bladed steel spokes (like Bola's ULT 45G or EXP 45G) hit this balance well. Carbon-spoke wheels (like Bola's PRM/PRO/CE/EXT) are stiffer and lighter, which can be advantageous on smooth, fast gravel courses - but they're harsher on rough terrain and more fragile. For most gravel races (which include rough sections), steel-spoke wheels are the more practical, reliable choice. If you're racing on very smooth, fast courses (like some BWR events or paved/gravel mixed events), carbon-spoke wheels can give you a small advantage.

Q: Are 35mm gravel wheels too flexy for hard efforts?

No, 35mm gravel wheels with 24/24 bladed steel spokes are not too flexy for hard efforts. The 35mm rim depth provides enough lateral and torsional stiffness for out-of-the-saddle climbing, sprinting, and hard cornering - especially when paired with quality bladed spokes (Sapim CX-Ray) and wide-flange hubs. 35mm wheels are slightly less stiff than 45mm wheels (you may notice a tiny bit more flex during very hard efforts), but the difference is small for most riders. The advantage of 35mm wheels is lower weight (better for climbing) and more vertical compliance (better for rough terrain). For riders under 80kg, 35mm wheels are more than stiff enough for all gravel riding. For heavier riders (85kg+) or riders who do a lot of out-of-the-saddle sprinting, 45mm wheels may provide a bit more confidence-inspiring stiffness.

Q: How does wheel stiffness affect traction on gravel?

Wheel stiffness affects traction in complex ways: Lateral stiffness: Moderately high lateral stiffness improves cornering traction because the wheel maintains its shape and the tire contact patch stays consistent through corners. Too much lateral stiffness (very stiff wheel) can reduce traction because the wheel doesn't conform to terrain irregularities - it bounces instead of gripping. Vertical compliance: Higher vertical compliance (more flexible wheel) improves traction because the wheel conforms to terrain, keeping the tire in contact with the ground. Too much vertical compliance (very soft wheel) can reduce traction because the wheel deforms excessively, causing the tire contact patch to change shape unpredictably. The optimal balance: A wheel with moderate lateral stiffness (for cornering precision) and moderate-high vertical compliance (for terrain conformity) provides the best traction on gravel. This is why 35-45mm rims with steel spokes and wide tires at low pressures are ideal for gravel - they strike this balance perfectly.

Q: Can I make my wheels more compliant without buying new wheels?

Yes, there are several ways to increase effective compliance without buying new wheels: (1) Lower tire pressure: This is the easiest and most effective way - lower pressure = more compliance. Experiment with 2-5 PSI lower than your current pressure (but don't go below the tire/rim manufacturer's minimum). (2) Wider tires: If your frame/rim allows, switch to a wider tire (e.g., from 35c to 40c) - wider tires at the same pressure are more compliant. (3) More compliant tires: Some tire models are designed for comfort (e.g., Panaracer GravelKing, Specialized Pathfinder Pro) with more flexible casings - switching to a more compliant tire can improve comfort. (4) Tubeless setup: If you're currently using tubes, switch to tubeless - tubeless allows lower pressures (more compliance) without pinch flat risk. (5) Bar tape / gloves: Thicker bar tape or padded gloves can reduce hand/arm fatigue (though this doesn't change wheel compliance, it improves perceived comfort). (6) Lower spoke tension: If your wheels are built with very high spoke tension, a professional wheel builder can slightly reduce tension (within safe limits) to increase compliance - but this should only be done by a professional, as too-low tension can cause spoke fatigue and wheel failure.

Conclusion: Find Your Stiffness Sweet Spot

The optimal gravel wheel strikes a balance between three types of stiffness: lateral stiffness (for cornering precision and power transfer), torsional stiffness (for acceleration and braking response), and vertical compliance (for comfort, traction, and speed on rough terrain). Too much stiffness = harsh ride, reduced traction, hand/arm fatigue. Too little stiffness = flexy feel, power loss, vague steering, durability issues.

For most gravel riders, the optimal setup is: 35-45mm rim depth, 25mm internal width, T800 carbon, 24/24 bladed steel spokes (Sapim CX-Ray or Pillar 1420), 2X lacing, wide-flange hub with ratchet freehub, 35-42c tires at 25-45 PSI. This combination provides enough lateral/torsional stiffness for performance while maintaining excellent vertical compliance for comfort and traction on rough terrain.

Bola's gravel lineup (ELT 45G, ULT 45G, SL 45G, EXP 45G, ULT 35G, EXT 35G) is engineered to hit this stiffness sweet spot. The 45mm models are the best all-round choice for most gravel riders, while the 35mm models are ideal for climbing, rough terrain, and riders prioritizing comfort. All Bola gravel wheels use T800 carbon, 24/24 bladed steel spokes (except EXT 35G with carbon spokes), 2X lacing, and high-quality hubs - providing the optimal stiffness-compliance balance for gravel riding.

Ready to Find Your Perfect Gravel Wheels?

Explore Bola's complete gravel carbon wheel collection:

• Gravel Wheels - 35mm and 45mm depths, 25mm internal width, T800 carbon, 24/24 bladed steel spokes, optimized stiffness-compliance balance
• Road Wheels - for road-to-gravel and all-road use (disc brake models work well with 32-35c gravel tires)
• Carbon Rims (DIY builds) - build your own custom gravel wheelset with your preferred spokes, hubs, and lacing

All Bola wheelsets include: tubeless tape (pre-installed) + tubeless valves, 2-year warranty, crash replacement program (50% off), and free worldwide shipping on orders over $500. Not sure which gravel wheel model or rim depth is right for your riding style and terrain? Contact our engineering team at info@bolacarbon.com with your weight, riding style, typical terrain, and performance priorities - we'll recommend the optimal wheelset for your specific needs.

Last updated: September 2027. Stiffness-compliance analysis based on engineering principles, finite element analysis (FEA), independent testing (WheelEnergy, German Tour Magazine, CyclingTips), and real-world riding experience. Actual wheel stiffness varies by specific model, build quality, spoke tension, and tire/pressure setup. Always test wheels on your typical terrain before making a purchase decision.
