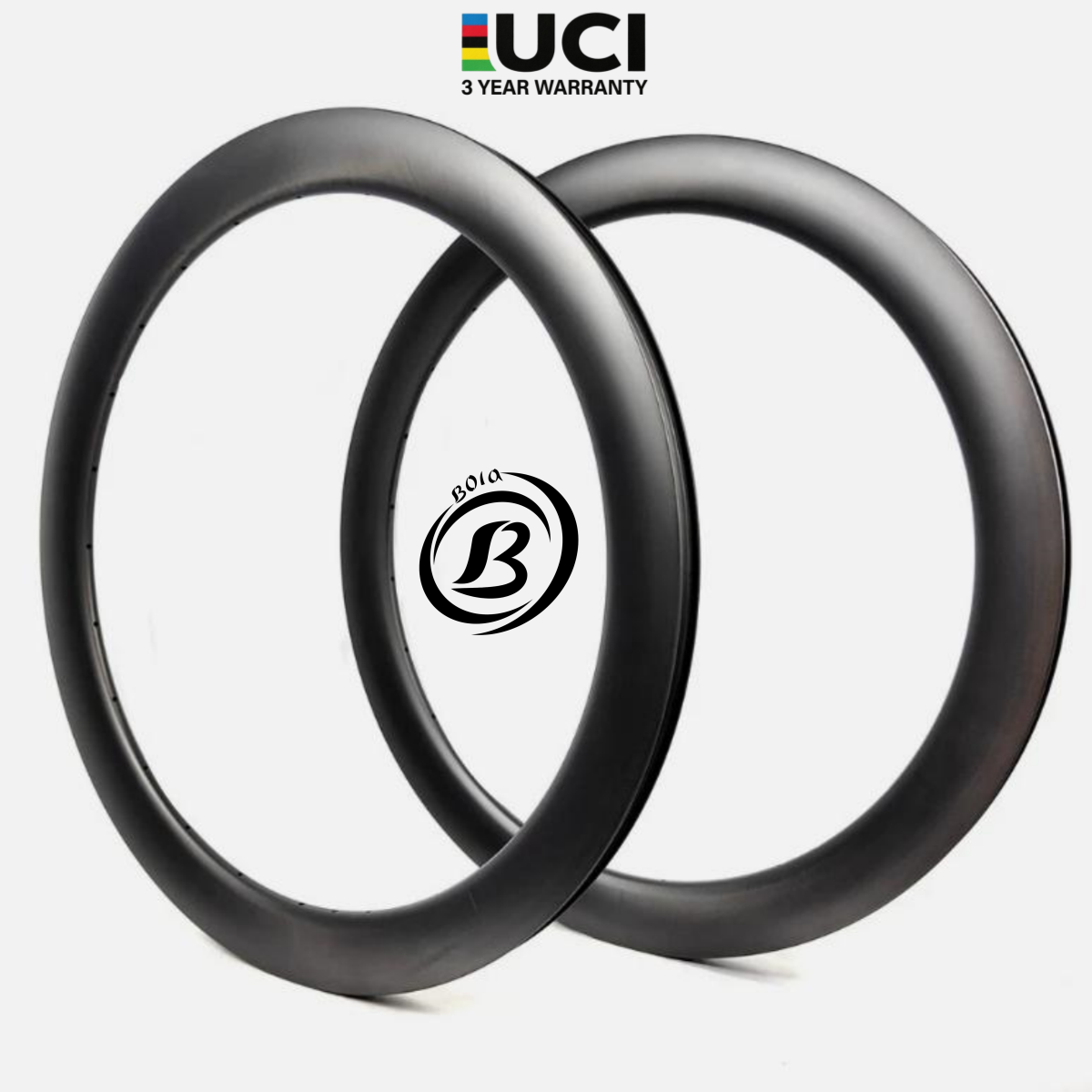

• 700C Tubular Carbon Road Rim set, 60mm deep, 28mm wide, weighing 415g, featuring a sleek black finish.
  • Detailed side view of 700C 60mm deep-section carbon tubular rim, 28mm wide for road racing
  • Close-up surface texture of carbon fiber 700C 60mm tubular road rim, matte black finish
  • Tubular rim bed of 700C carbon road rim, optimized for 28mm wide tubular tires
  • 700C tubular carbon road rim, 60mm deep, shown with red Bola logo decal
  • 28mm wide, 60mm deep carbon tubular rim for road bikes with white Bola logo on black carbon
  • 60mm deep 700C tubular road rim, 28mm width, with yellow Bola branding accent on carbon finish
1 7

Carbon Fiber Sporting Goods

700C Tubular Carbon Road Rim – 60mm Deep, 28mm Wide, 415g

700C Tubular Carbon Road Rim – 60mm Deep, 28mm Wide, 415g

$260.00 USD
$380.00 USD $260.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

🚚 预计发货：3天内

700C Tubular Carbon Road Rim

Summary: Designed for competitive road cycling and triathlon, this 700C tubular-specific carbon rim features a 60mm deep-section U-shape profile and 28mm outer width for optimized aerodynamics and stability. Superlight at 415g (±15g); also available as 435g (±15g) standard build. Supports up to 120kg rider weight at 100–125 psi. Ideal for flat and rolling courses where aero efficiency is prioritized, though deeper profile may catch more crosswind on technical climbs.

Key Specifications

Parameter Value
Rim Standard 700C (ISO 622)
Profile U-shape, 60mm depth
Outer Width 28mm
Effective Rim Diameter (ERD) 518mm
Weight – Standard 435 ± 15g
Weight – Superlight 415 ± 15g
Tire Compatibility Tubular only
Rider Weight Limit 120kg
Min / Max Tire Pressure 100–125 psi
Forward Compressive Strength >300kg
Lateral Torsion >50kg
Spoke Hole Tension >280kg

Real-World Use Case

  • Road Racing / Triathlon: 60mm depth offers aerodynamic gains for flat and sprint courses.
  • Endurance / Urban: Lightweight rim supports high performance while maintaining durability.
  • Climbing and Crosswinds: Deeper profile may be more sensitive to gusts; lighter option aids on moderate climbs but not for extreme gradients.

Comparison Table

Feature 700C/28mm/60mm (this rim) 25mm/60mm (common)
Width 28mm 25mm
Weight 415–435g 425–440g
Tire Fit 28mm tubular 25mm tubular

FAQs

  • Q: Is a 60mm deep carbon rim suitable for triathlons?
    A: Yes, this rim is optimized for sustained speed and lower drag on flat/rolling courses typical in triathlon events.
  • Q: How does 28mm width impact performance compared to 25mm?
    A: 28mm width increases tire support for stability and cornering, matching modern racing trends.
  • Q: What is the typical weight for a quality tubular carbon rim?
    A: Lightweight options are 400–440g; this rim (415–435g) meets high-performance standards.
  • Q: Are 60mm deep rims too affected by crosswinds?
    A: Deep-section rims offer speed but will catch more wind; suitable for riders comfortable managing gusts.

Certifications & Standards

This rim is manufactured to ISO 4210-7 and undergoes compressive and fatigue strength testing. Custom drilling and finishes available for OEM partners.
