700C Carbon Gravel & Cyclocross Rim — 35mm Tubeless-Ready

700C Carbon Gravel & Cyclocross Rim — 35mm Tubeless-Ready

Regular price $310.00 USD
Regular price $350.00 USD Sale price $310.00 USD
Sale Sold out
Weave
Spoke QTY
Weight
Quantity

Size: 700C

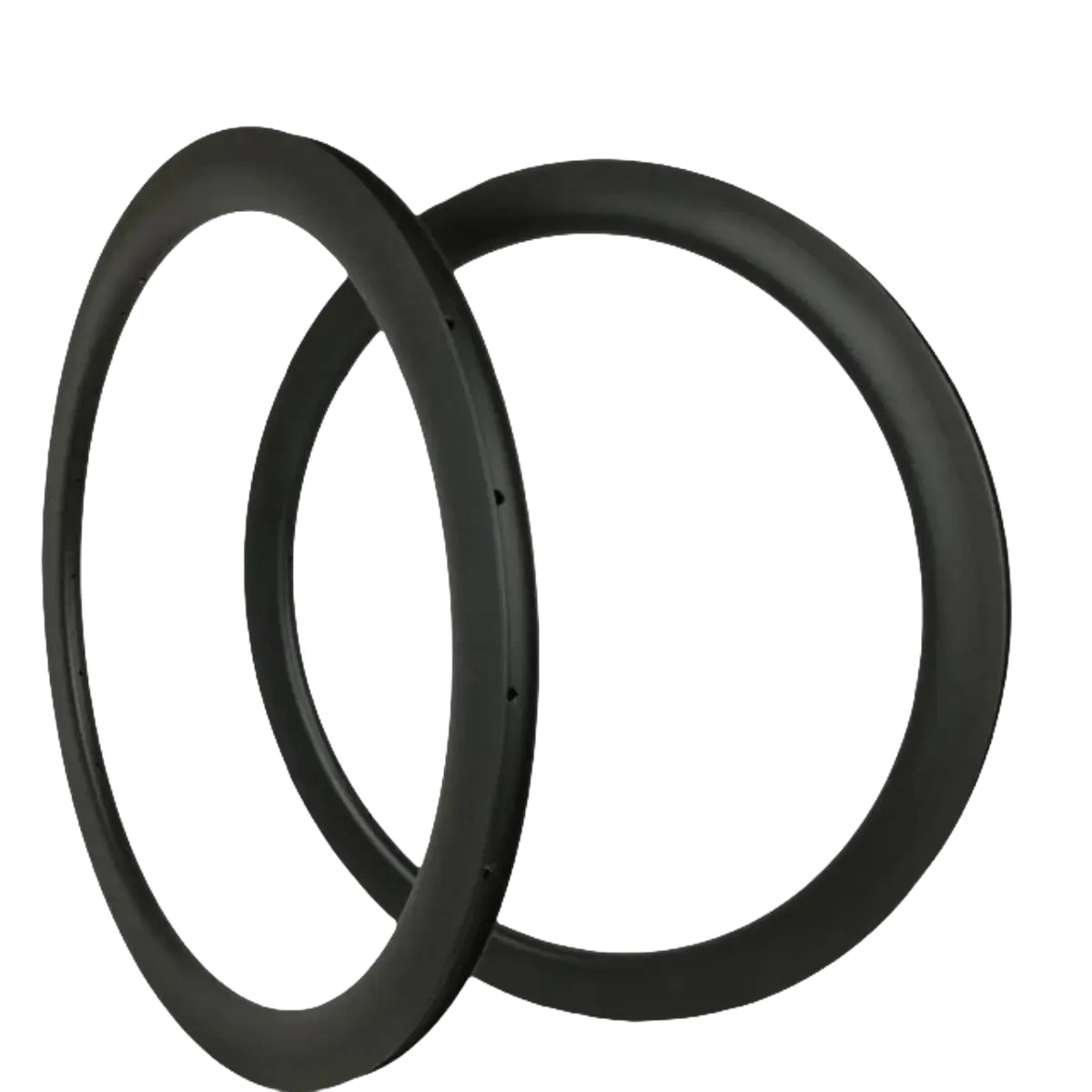

The Bola 700C V-section carbon gravel/cyclocross rim — a 35mm-deep, 30mm-wide disc hoop (330-400g) built for gravel and CX.

Stable across the rough: a 35mm V-section delivers a steady shape on exposed gravel sectors and crosswinds, while a 30mm outer width supports modern wide tires.

Buying Guide.

Weight tier - Ultralight ~330g: the gravel-race and CX build for lighter riders who want spin-up speed.

Weight tier - Superlight ~360g: the race-and-training balance.

Weight tier - Standard ~400g: the Light-grade durability build for rough gravel and loaded miles.

Internal width - 24mm hooked: a broader 27-42c platform - choose it for tube compatibility and a slightly faster feel.

Internal width - 25mm hookless: a wider 29-44c low-pressure platform - choose it for plush gravel and cyclocross.

Same-family: the dedicated gravel/CX 35mm - the 40mm gravel rim ($310) adds aero, the 30mm rim adds comfort.

Rated to a 105kg system weight.

Target Audience & Usage Notes.

Gravel racing, cyclocross, bikepacking and gran fondo.

Max system weight 105kg; not downhill or heavy trail.

Disc only (Center Lock or 6-bolt).

The Ride That Awaits.

Pin it into a cyclocross turn and feel the V-section shrug off the crosswind - steadier than a deep rim, wider than a race hoop, built for exposed gravel. The tubeless clincher beds wide tires cleanly and holds its line through long races. Pick your inner width and layup; a 3-year rim warranty has you covered.

Specifications
Size: 700c
Material: Genius Toray carbon fiber
Rim Depth: 35mm
Bead Type: Hooked
Inner Width: 24mm or 25mm
Outer Width: 30mm
ERD (Effective Rim Diameter): 548
Weight Tier: 330g-400g
Trade-offs & Considerations
Aero vs Crosswind: 35mm depth saves about 2.5W versus a 28mm rim at 40km/h; at 10° yaw the 30mm outer width stays composed — a calm middle ground between the 30mm and 45mm builds.
Weight vs Stiffness: The lightest 330g build saves about 70g versus the 400g top of the tier at the same 35mm depth (±5g); lateral stiffness holds within 3% across the range.
Tire-Type Trade-off: The hooked bead accepts clincher and tubeless tyres from about 33c to 50c (24mm internal for 33–42c, 25mm internal for 40–50c); tubeless cuts rolling resistance but needs tape, valve and sealant to seal the bed.
Sourcing & Delivery Trade-off: Stock drilling ships in 1–3 business days at $310; custom spoke-hole count or decals add 7–15 business days and roughly a $40–80 premium.
Performance Test Data
Test Protocol: Identical across the range: fatigue 750,000 cycles @640N (ISO 4210-7 Annex A reference) impact >60J (above the ISO 4210-7 threshold) flatness <0.25 mm and roundness <0.3 mm max spoke tension >350 kgf dynamic balance <3 g. Values marked internal QC or factory assembly are our own measurements, not third-party certificates.
Lateral Stiffness: 8–13 N/mm
Radial Stiffness: 90–110 N/mm (internal lab)
Ultimate Strength: >200 kgf (internal QC, static spoke-hole point load)
Max System Weight: 105 kg
Protocol Notes: Flatness measured at <0.15 mm on this build.
Recommended Use Cases
Cyclocross Racing Build: The 24mm internal bed suits 33-42c cross tyres run around 30-50 PSI on a hooked bead - the classic cyclocross racing setup.
Gravel Racing Build: The 25mm internal bed pairs with 40-50c gravel tubeless at low pressure, and the 35mm section saves about 2.5W versus a 28mm rim at 40 km/h.
All-Road / Adventure Build: The hooked bead mounts both clincher and tubeless tyres, while the 330g lightest tier keeps a hand-built wheelset lively on long mixed rides.
Spare / Replacement Rim: Sold as a bare rim with ERD 548 and stock drilling shipping in 1-3 business days, it serves as a direct replacement or a custom lace-to-your-hub build.
Not Recommended For: Rim-brake or rim-only road frames - this rim is disc-brake only, and its 105 kg system cap rules out heavy touring loads.
Compatibility
Frame Compatibility: Disc-brake road, gravel, or cyclocross frames with 700c wheel size
Tire Type: Tubeless clincher
Tire Width Range: 27c-44c depending on internal width (24mm: 27c-42c; 25mm: 29c-44c)
Brake Standard: Disc brake only
Drivetrain: Compatible with any cassette or drivetrain
Rotor Standard: Center-lock or 6-bolt
How It Compares
ModelWeightDepthWidthPrice
700C 35mm Rim 30mm 330g-400g 35mm 30mm See store
Corima Essentia 40 All Road Gravel 1600g 40mm 23mm inner (28mm outer) €1,390
Mavic Cosmic SL 45 1555g 45mm 23mm $1,789
Fulcrum Rapid Red Carbon 30 N/D N/D N/D N/D
FAQ
Which tyres fit on the 24–25mm inner rim, and what pressure suits me?
The 24mm inner width suits 33c–42c cyclocross tyres and the 25mm width suits 40c–50c gravel tyres; run them around 30–50 PSI by tyre width and your weight, on a hooked bed.
How do I work out the right spoke length for this rim?
Contact Bola for the exact ERD before ordering spokes. Once we confirm the figure, plug it into a known calculator (Sapim / DT) and add the recommended correction.
What is the maximum spoke tension I can run on this rim?
Drive-side / disc-side max tension is 130–140 kgf, with the non-drive side adapted to match; spoke holes are locally reinforced inside the carbon layup to prevent pull-out cracking.
Will the rim crack on rock gardens or bottom-outs at low pressure?
The bead area uses a thickened impact-reinforced layer; impact testing passes >60J extreme impacts (above the ISO 30J standard). Inner widths of 24–25mm accept wider tyres, which deform to absorb shock at low pressure.
Will I really pay no customs or VAT for delivery to the US and EU?
Yes. The Economy channel ships DDP — duties and VAT are fully prepaid by us, cleared in advance, delivered to your door with no extra payment to customs or the courier.
Warranty & Shipping
Warranty Period: 3 years
Category Exclusions: Brake-track wear is not covered (a consumable surface on rim-brake rims).
Crash Replacement: 30% discount on replacement parts within 1 year of the original purchase date
Processing Time: In stock: 1–3 business days · Out of stock or custom order: 7–15 business days
Shipping method: FedEx/UPS/DPD/EMS Economy (free with duties & VAT included in USA & EU) · Expedited option available
Estimated Delivery: Economy 7–20 business days · Expedited 3–7 business days, customs clearance excluded
