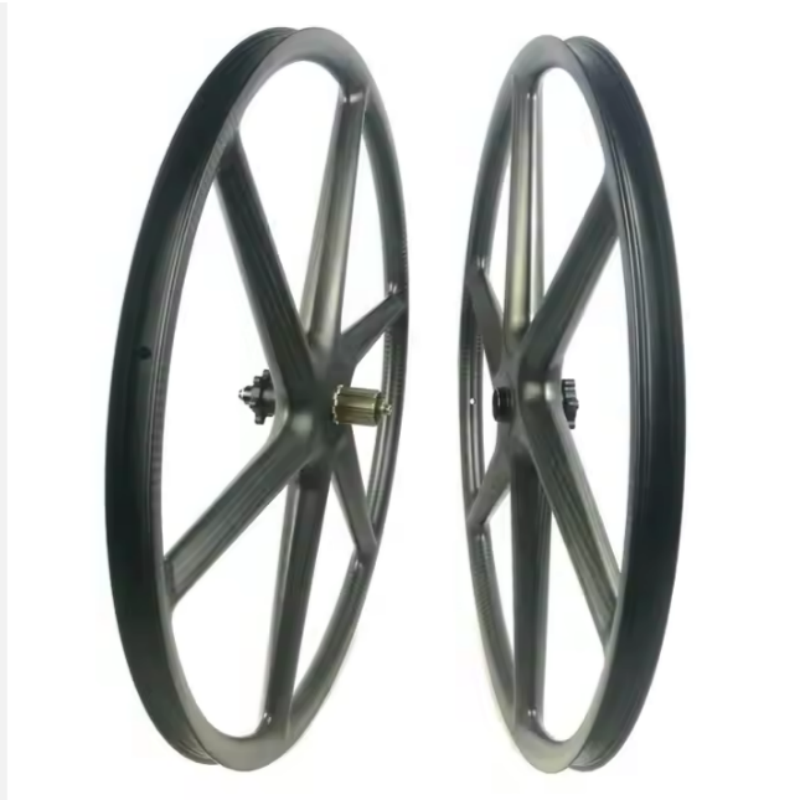

Bola 700C Carbon 6-Spoke Wheelset

Bola 700C Carbon 6-Spoke Wheelset

$650.00 USD
$750.00 USD $650.00 USD
Sale Sold out
Free shipping  |  VAT included in EU & USA
Weave
CenterLock Hub
Casstle

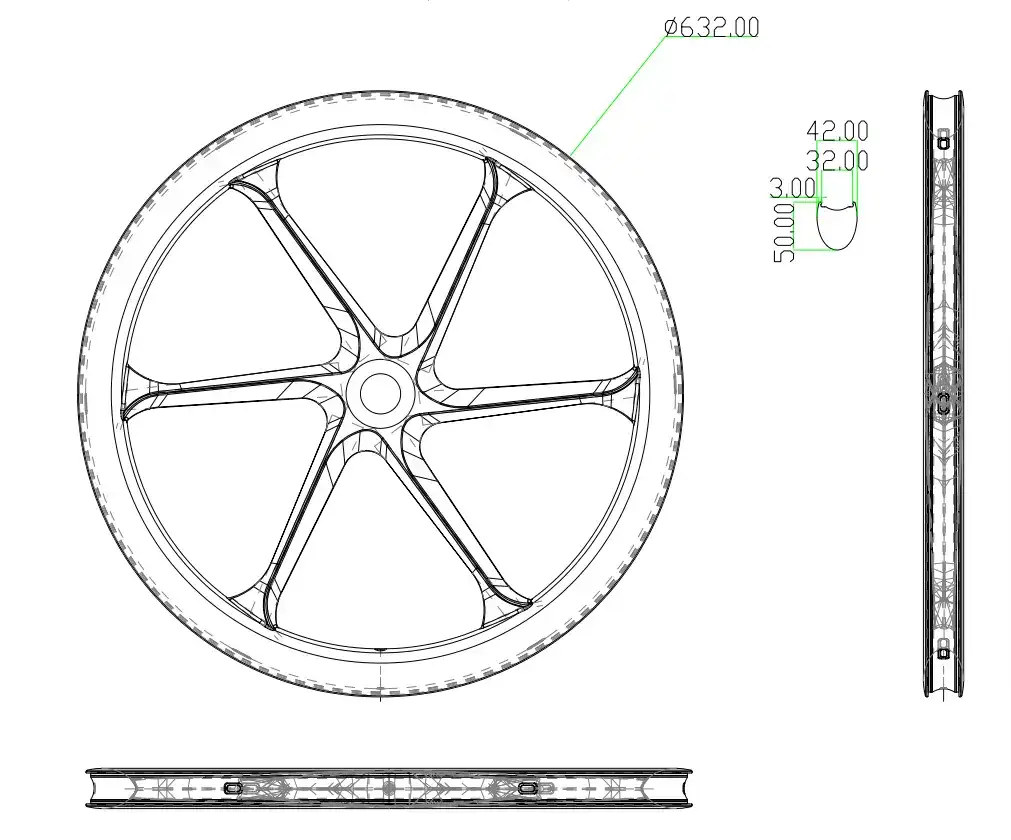

The Bola 700C carbon 6-spoke wheelset - a 50mm-deep, 42mm-external / 32mm-internal wide aero wheelset with a 36T ratchet hub, ~655g front / ~770g rear, for TT, tri and aero road.

Six structural blades spanning a remarkably wide bed - a 6-spoke that marries wind-tunnel-proven aero with the wide-tyre comfort modern riding demands.

Buying Guide.

Racing role: a wide, complete aero wheelset for aero road, fast all-road and TT - six structural blades on a broad tyre bed.

Tyre choice: the wide internal bed suits 32-48mm rubber - 32-40mm at moderate pressure for fast mixed surfaces, 40-48mm lower for rough terrain.

Hub engagement: the quick ratchet hub and choice of freehubs suit surging and modern 12-speed drivetrains.

Family comparison: the 5-spoke wheel ($650) is a front-focused narrower option; the four-spoke wheelset ($650) is a different blade count.

Not a narrow-climbing race wheel; respect the system weight limit.

Target Audience & Usage Notes.

aero road, TT/triathlon and fast all-road riders wanting a wide, one-wheelset solution.

Disc brake, Center Lock; choose Shimano HG / XDR / Microspline and axle at checkout. 32-48mm tubeless tyres.

Not a narrow-climbing race wheel.

The Ride That Awaits.

Spin it up and the six blades hum with a stiff, purposeful note; undress the wind and the wide bed swallows rough surfaces, turning them into long, fast glides.

It feels built to keep going, mile after mile, for you.

Free shipping and a 2-year wheelset warranty round it out.

Specifications
Size: 700c
Carbon Grade: 待补充
Rim Depth: 50mm
Bead Type: Hooked
Inner Rim Width: 32mm
Outer Rim Width: 42mm
Hub Model: BL 200 36T
Spoke: P1420
Bearing Type: 待补充
Complete Wheelset Weight: 1400-1425g (tape & valve excluded, ±2% tolerance)
Accessories: Tape, valve and spare spokes
Trade-offs & Considerations
Aero vs Crosswind: 50mm depth saves about 4.5W versus a 40mm wheel at 40km/h; the 42mm outer width keeps the aero gain, but crosswind response at 10° yaw is more sensitive than a shallow 30mm rim.
Weight vs Stiffness: 1400–1425g for the set; bladed Pillar 1420 spokes and the carbon layup deliver high lateral stiffness for sprint power transfer, and the lightest build holds within 5g of 1400g.
Tire-Type Trade-off: The hooked bed runs clincher and tubeless tyres; the 32mm internal width suits 40–50c gravel volumes at 40–50 psi rather than narrow road tyres.
Sourcing & Delivery Trade-off: Stock build ships in 1–3 business days at $650; custom decals or lacing add 7–15 business days and roughly a $100 premium.
Config Ladder: The BL 200 36T ratchet hub is standard; moving steel to ceramic bearings cuts about 1.5W of hub friction for around +$120; a DT 240 hub upgrade adds about +$250.
Performance Test Data
Fatigue Test: 750,000 cycles @640N (ISO 4210-7 Annex A, informative only)
Impact Resistance: >40J (ISO 4210-7 reference)
Flatness: <0.25mm (internal QC)
Roundness: <0.3mm (internal QC)
Max Spoke Tension: >300kg (internal QC)
Ultimate Strength: >100kg (internal QC)
Dynamic Equilibrium: <3g (internal QC)
Radial Stiffness: 90–110 N/mm (internal lab)
Lateral Stiffness: 38-48 N/mm
Max System Weight: 110kg
Recommended Use Cases
Sprinting / Criterium: Excellent. Deep rim and stiff construction for fast accelerations and sprints.
Triathlon / TT: Excellent. Aerodynamic design reduces drag for time trial and triathlon.
Road Racing: Excellent. Balanced performance for racing.
Gran Fondo / Endurance: Good. Tubeless compatibility and wide tires enhance comfort over long distances.
Climbing / Hill Repeats: Good. Not the lightest, but manageable; 1425g is acceptable for climbing.
Not Recommended For: Off-road, heavy gravel, or crosswind-heavy environments.
Compatibility
Frame Compatibility: Disc brake road, triathlon, track frames with appropriate axle standards
Tire Type: Tubeless-ready, clincher
Tire Width Range: 32-48mm
Brake Standard: Disc only
Axle Standard: Front: 12x100mm or 9x100mm QR; Rear: 12x142mm or 10x135mm QR
Drivetrain: Shimano HG, SRAM XDR, Microspline
Rotor Standard: Disc rotor
How It Compares
ModelHubSpokeBearingWeightDepthWidthPrice
Six-Spoke BL200 P1420 Ceramic 1400-1425g 50mm 42mm see store
Model A Superdura CX-Ray Steel 1450g 50mm 30mm ~$800
Model B DT CX-Ray Ceramic 1500g 50mm 32mm ~$2000
Model C Parcours Pillar Steel 1400g 50mm 30mm ~$1100
FAQ
What tyre widths fit this wheelset?
The 32mm internal width suits 40c–50c gravel tubeless; run about 40–50 psi for 45c tyres.
How fast is the hub engagement?
The BL 200 ratchet uses 36 teeth, giving about 10° engagement for quick pickup.
Which freehub bodies are available?
HG comes standard; XDR and XD are selectable at checkout.
How much does the wheelset weigh?
1400–1425g, tape and valve excluded, ±2% tolerance.
What is it best for?
Aero road, flat-to-rolling gravel and time-trial efforts; it is not a steep-climb wheel.
Warranty & Shipping
Bearing Type: 待补充
Freehub Body: HG / XDR / XD
Complete Wheelset Weight: 1400-1425g (tape & valve excluded, ±2% tolerance)
Accessories: Tape, valve and spare spokes
Warranty Period: 2 years
Crash Replacement: 30% discount on replacement parts
Processing Time: 1–3 business days (standard stock); 7–15 business days (custom)
Estimated Delivery: 7–15 business days (standard); 3–5 business days (expedited)
