Bola 700C 60mm Carbon Tubular Rim | 28mm Wide
Bola 700C 60mm Carbon Tubular Rim | 28mm Wide
Couldn't load pickup availability
The Bola 700C 60mm carbon tubular rim - a deep 28mm-wide U-shape glued-tyre race rim with asymmetric spoke drilling for time-trial and race builds.
The sprinter's final weapon: a 60mm tubular rim, its tyre glued on for instant feedback and fearless cornering. The Bola 60mm tubular pairs deep aero with the legendary ride feel of a sewn-up tyre, built for riders who race on tubulars.
Buying Guide.
Weight tier - Superlight ~415g: the race-day pick - lightest end for glued-tyre sprints and TT, for lighter racers.
Weight tier - Standard ~435g: the durable choice - a touch more layup for impact margin on rough race roads.
Max rider weight: rated to 125kg - check rider + gear before ordering.
Same-depth series: the 60mm road rim and 60mm U-shape tubeless are the tubeless alternatives if you do not want to glue.
Adjacent depth: the 55mm tubular climbs and handles better; the 65mm tri rim goes deeper.
Target Audience & Usage Notes.
Target audience.: Racers, time-trial riders and tubular traditionalists.
Rim-only.
Glue (or tape) your own tubulars; use carbon-specific rim-brake pads and watch heat on long descents; respect 145 psi and 125kg.
Not for riders unwilling to glue tyres.
The Ride That Awaits.
Cement a 25-28mm tubular to the bed, lace to a lightweight race hub, and step to the start line: the glued tyre answers every steer as if it were part of you, the deep aero swallowing the flat whole, the rear holding true. This is race day, distilled. Free shipping, a 3-year rim warranty and crash-replacement discount - build your tool, then ride it like you mean it.
Translation missing: en.product.metafields.specifications

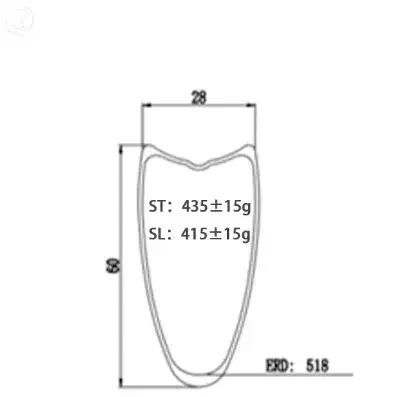

- Wheelset weight (+/-2% tolerance, excluding rim tape and valves): Superlight 415g / Standard 435g (+/-15g)
- Rim depth: 60mm
- External width: 28mm
- Internal width: 28mm (tubular bed)
- ERD: 519mm
- Spoke Holes: 20/24 asymmetric
- Tubeless: Tubular (glued); specs note tubeless-compatible
- Hooked/Hookless: Hooked tubular bed
- Max Tire Pressure: 145 psi (hooked)
- Max System Weight: 125kg
- Material: Toray carbon
- Brake Type: Rim brake (carbon-specific pads)
Translation missing: en.product.metafields.tradeoffs
- Delivery vs Price: Factory-direct at $310 per rim (roughly half the cost of a single branded rim), but overseas dispatch takes 7-20 business days via FedEx/UPS/DPD Economy. Comparable Zipp 404 Firecrest ~$2,300-$1,600+ each.
- Weight vs Durability: 415g Superlight is 20g lighter for race day; Standard 435g adds layup margin. Both tubular beds are light because no hook is needed.
- Tubular vs Tubeless: Tubulars give direct feel and no pinch flats but require gluing and are heavier to carry spares; the tubeless 60mm rims are more convenient.
- Rim-only Build: Hub, spokes, nipples and glue sold separately; spoke length from ERD 519mm.
Translation missing: en.product.metafields.performance
- Fatigue Test: 750,000 cycles @640N (ISO 4210-7 Annex A, informative only)
- Impact Resistance: >40J (ISO 4210-7 reference)
- Flatness / Roundness: <0.25mm / <28mm (tubular bed) (internal QC)
- Max Spoke Tension: >300kg (internal QC)
- Radial / Lateral Stiffness: 90-110 N/mm radial; >=8 N/mm lateral (internal lab)
- Dynamic Balance: <Superlight 415g / Standard 435g (+/-15g) (internal QC)
Translation missing: en.product.metafields.usecases
- Road Racing Builds: 2026 peloton standard is 28-30mm tubeless on wide rims (TdF 2026 avg ≈30mm); 60mm section suits 40+ km/h racing.
- Gran Fondo / Endurance: Modern 2026 frames (Propel, SuperSix, S5) design around 30-32mm clearance; 21mm inner bed pairs 25-32mm tubeless per ETRTO 2026 guidance.
- Wheel Building: Custom road builds with disc or rim hubs; UD carbon layup options for weight-conscious or durable builds.
- Weight Tier Selection: Offered in weight tiers (125kg); lighter for climbing, heavier for training and impact margin.
Translation missing: en.product.metafields.compatibility
- Frame: 700C (ISO 622) road/TT frames with rim brakes
- Tire Type: Tubular (glued)
- Tire Width: 23-32mm tubular
- Valve: Presta (tubular valve)
- Brake: Rim brake - use carbon-specific pads
Translation missing: en.product.metafields.compares
| Translation missing: en.product.metafields.model | Translation missing: en.product.metafields.hub | Translation missing: en.product.metafields.spoke | Translation missing: en.product.metafields.bearing | Translation missing: en.product.metafields.weight | Translation missing: en.product.metafields.depth | Translation missing: en.product.metafields.width | Translation missing: en.product.metafields.price |
|---|---|---|---|---|---|---|---|
| 700C Carbon Tubular Rim 60mm 28mm | - | - | - | Superlight 415g / Standard 435g (+/-15g) | 60mm | 28mm (tubular bed) | $310.00 |
| Model A | - | - | - | ~330g | 58mm | 24mm | ~$700 |
| Model B | - | - | - | ~370g | 49/55mm | ~25mm | ~$750 |
| Model C | - | - | - | ~350g F/420g R | 48mm | 24mm | ~$1,500 |
Translation missing: en.product.metafields.faq
What is the Bola 60mm Tubular Rim and what is included?
A single bare carbon rim, sold rim-only with no hub, spokes, nipples or tape - built to your choice of components or used as a single-rim replacement.
How do I mount a tubular on this rim?
Use tubular cement or tape (e.g. Tufo) and glue/sew the tyre onto the tubular bed; inflate to 145 psi max. Tubulars require a glue process - no clincher fitting.
Can I use it tubeless?
The specs note tubeless compatibility, but this is a tubular-optimised rim; for a true tubeless build choose the tubeless 60mm rims.
What tyre sizes fit?
23-32mm tubular; 25-28mm is the classic race choice.
What is the ERD and spoke count?
ERD 519mm; 20/24 asymmetric spoke holes.
How long is shipping and what warranty applies?
Free shipping, VAT included in EU & USA. 3-year rim warranty against manufacturing defects with crash-replacement discount. Dispatch 1-3 business days; FedEx/UPS/DPD Economy delivers in 7-20 business days.
