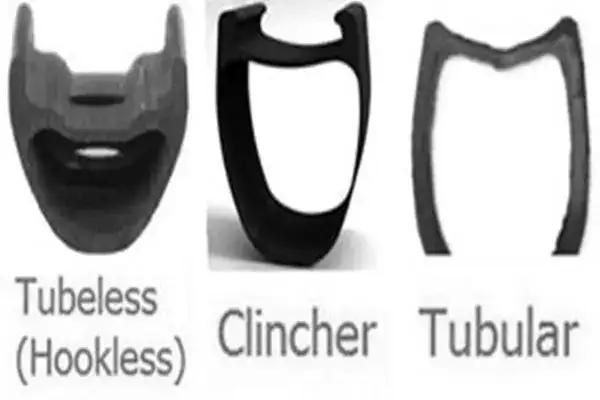

• Carbon tubeless rim cross-section of Bola 700c 60mm, showing U-shape and bead seat compatibility
  • Closeup of Bola carbon gravel rim surface texture – hand-finished matte T700/T800 carbon
  • Detail view of carbon fiber layup on 700C 50mm clincher bicycle rim
1 3

BOLA 700c OEM Carbon Bike Rim | T700/T800/T1000, Tubeless-Ready

BOLA 700c OEM Carbon Bike Rim | T700/T800/T1000, Tubeless-Ready

$100.00 USD
$120.00 USD $100.00 USD
Sale Sold out
Free shipping  |  VAT included in EU & USA

A versatile OEM carbon rim platform in 700c/29er/32er with T700/T800/T1000 layup options, 30–180mm depths, 25–42mm widths, fully customizable.

The OEM Blank Canvas

The BOLA 700c OEM carbon rim is a fully customizable platform for wheel brands, teams and builders. Choose T700 (durable training), T800 (competitive road) or T1000 (pro-level ultra-light), with depths from 30mm to 180mm and widths from 25mm to 42mm.

Buying Guide.

Layup - T700: durable training and high-mile builds.

Layup - T800: the competitive road sweet spot.

Layup - T1000: pro-level ultra-light, the lightest and most costly.

Configuration - depth and width to order: from climbing depths to disc-style deep sections and narrow to wide beds; tell the factory your discipline.

Use - a blank canvas, not an off-the-shelf rim: bring your spec, your hole pattern and your brand.

Target Audience & Usage Notes.

OEM wheel brands, bike shops, race teams, and custom wheel builders.

Not a single-specification off-the-shelf rim.

The Ride That Awaits.

Bring us your drawing, your discipline, your brand - and watch the factory turn a blank canvas into the rim you have imagined, laid up to your weight, depth and width, built to the tolerances a flagship deserves. It starts with your spec. A 3-year warranty and free shipping are the foundation; the vision is yours.

Specifications
Size: 700c
Material: Genius Toray carbon fiber
Rim Depth: 30-180mm
Bead Type: Hooked
Inner Width: 18-35mm
Outer Width: 25-42mm
ERD (Effective Rim Diameter): TBD
Weight Tier: OEM
Trade-offs & Considerations
Aero vs Crosswind: The 30–180mm depth range lets you scale aero against stability: a 180mm section saves roughly 15.0W over a 30mm rim at 40km/h on a flat time trial, but above about 60mm depth the crosswind steering load grows sharply at 10° yaw.
Weight vs Stiffness: The T1000 layup saves about 100–150g per rim versus a T700 layup at the same depth (±5g) at a higher unit cost; T800 sits in the middle for weight and price, while lateral stiffness stays in the same carbon envelope.
Tire-Type Trade-off: The hooked bead covers a wide 18–35mm internal width for clincher and tubeless tires; tubeless lowers rolling resistance and pinch-flat risk but needs tape, valve and sealant to seal the bed.
Sourcing & Delivery Trade-off: Standard tooling starts at $100; custom spoke-hole count, nipple angles and drilling patterns add 7–15 business days and a setup premium, while stock drilling ships fastest.
Performance Test Data
Fatigue Test: 750,000 cycles @640N (ISO 4210-7 Annex A, informative only)
Impact Resistance: >40J (ISO 4210-7 reference)
Flatness: <0.15mm (internal QC)
Roundness: <0.3mm (internal QC)
Max Spoke Tension: >280kg (internal QC)
Ultimate Strength: >300kg (internal QC)
Dynamic Equilibrium: <3g (internal QC)
Radial Stiffness: 90–110 N/mm (internal lab)
Lateral Stiffness: ≥8N/mm
Max System Weight: N/A
Compatibility
Frame Compatibility: 700c road/gravel,29er,32er frames
Tire Type: Clincher,tubular tubeless-ready
Tire Width Range: 25–50mm (road gravel or MTB)
Brake Standard: OEM
Drivetrain: N/A
Rotor Standard: N/A
How It Compares
ModelWeightDepthWidthPrice
700C OEM Rim OEM 30–180mm 25–42mm See store
Model A ~430g 50mm 28mm $1,399
Model B ~430g 50mm 27mm $249
Model C ~420g 50mm 30mm $389
FAQ
Can you drill the spoke holes to my own pattern and hole count before shipping?
Yes — as an OEM rim we custom-drill the spoke holes to your chosen pattern and hole count. Just tell us your build spec when you order.
Do I get a bare rim here, or is it built up with a hub and spokes?
It's a bare carbon rim — no hub, spokes or nipples. Take it to any wheel builder to lace it to your own hub; we can also supply a built wheel on request.
What spoke drillings are available, and which brake type is this rim rated for?
Spoke drillings and brake rating depend on the build option, selectable at checkout. If you plan to lace your own wheel, confirm the drilling and brake type with Bola before ordering so the rim matches your hub and frame.
What spoke tension can I safely build to — will the holes pull out of the carbon?
Drive-side / disc-side maximum tension is 130–140 kgf, with the non-drive side adapted to match; the spoke holes are locally reinforced inside the carbon layup to prevent pull-out cracking.
Will I really pay no customs or VAT for delivery to the US and EU?
Yes. The Economy channel ships DDP — duties and VAT are fully prepaid by us, cleared in advance, and delivered to your door with no extra payment to customs or the courier.
Warranty & Shipping
Warranty Period: 3 years
Crash Replacement: 30% discount on replacement parts
Processing Time: In stock: 1–3 business days · Out of stock or custom order: 7–15 business days
Shipping method: FedEx/UPS/DPD/EMS Economy (free with duties & VAT included in USA & EU) · Expedited option available
Estimated Delivery: Economy 7–20 business days · Expedited 3–7 business days, customs clearance excluded
