29" Asymmetric Hookless Tubeless Carbon MTB Rim | 23mm Profile | 32mm Inner Width | XC & AM | 325–385g

29 Inch Asymmetric Tubeless Carbon Rim: Performance Meets Precision

The Bola 29er asymmetric carbon MTB rim is engineered for cross-country (XC) and all-mountain (AM) riders who need a tubeless-ready hookless rim that is measurably lighter and structurally more balanced than conventional symmetrical designs. Available in two weight variants — Standard (385 ± 15 g) and Superlight (325 ± 10 g) — it delivers competitive weight savings without sacrificing structural integrity.

Why Asymmetric? The Performance Case

On a standard rear wheel, spoke tension is unequal between the drive and non-drive sides due to hub flange offset. An asymmetric rim offsets the spoke bed laterally to reduce this tension differential, producing a more evenly tensioned, laterally stiffer, and longer-lasting wheel build. The result is measurably improved power transfer and reduced spoke fatigue — particularly relevant for AM riders running wide tires at lower pressures.

Key Specifications

Riding Discipline Fit

• XC Racing: The Superlight variant (325 ± 10 g) reduces rotational mass, improving acceleration and climbing efficiency on hardpack and mixed-terrain race courses.
• All-Mountain (AM): The 32 mm inner width optimally supports 2.3"–2.5" tires at 45–65 psi, improving cornering stability and traction on technical descents.
• Enduro (moderate): The > 300 kg compressive strength and < 0.15 mm flatness tolerance offer durability for riders up to 100 kg on mixed-terrain terrain.

Hookless Tubeless: Tradeoffs to Know

Hookless rims offer a lighter and more uniform bead shelf compared to hooked designs, and are fully tubeless-compatible. However, they require tubeless-rated tires and must be operated within the specified 45–65 psi range. High-pressure tube setups are not recommended. All major tire brands (Maxxis, Schwalbe, Continental) offer 29er tubeless options compatible with a 32 mm inner width hookless rim.

Customization Options

As a direct manufacturer with over a decade of supply experience to European and North American cycling brands, Bola offers customizable hole diameters, nipple angles, spoke counts, and OEM/private-label finishing. Contact us for minimum order quantities and lead times.

Warranty

Three-year manufacturer warranty covering structural defects under normal riding conditions.

Frequently Asked Questions

Q: Are hookless carbon rims safe for trail and all-mountain riding?

A: Yes, provided you use tubeless-rated tires and stay within the 45–65 psi range specified for this rim. Hookless bead shelves have been validated by major OEMs including Canyon, Trek, and Specialized on trail and AM builds. The > 300 kg compressive strength rating confirms structural suitability for off-road impact loads.

Q: What tire width range works best with a 32 mm inner width?

A: ETRTO guidelines recommend a tire width 1.8×–2.5× the inner rim width. For 32 mm inner width, optimal tire widths are 2.3"–2.5" (58–63 mm), though 2.1"–2.6" fitments are commonly used in XC and AM applications.

Q: What is the weight difference between the Standard and Superlight variants?

A: The Standard rim weighs 385 ± 15 g per rim; the Superlight version weighs 325 ± 10 g — a saving of approximately 60 g per rim (120 g per wheelset), which is meaningful for competitive XC racing.

Q: Can I run tubes in a hookless rim?

A: It is not recommended. Hookless rims are designed for tubeless-only use. Running inner tubes in a hookless bead profile can lead to bead unseating under pressure.

Q: Is the asymmetric design only for rear wheels?

A: Asymmetric rims provide the greatest benefit on the rear wheel where drive-side spoke tension disparity is largest. Some builders use them on the front as well for consistency; both applications are structurally valid.

Innovative Design and Material Quality

The 29 inch asymmetric tubeless carbon rim features advanced carbon fiber construction, delivering exceptional strength at a minimal weight of 325 to 385 grams. Its asymmetric shape rebalances spoke tension and improves wheel durability, making it perfect for demanding trail, cross-country (XC), and all-mountain (AM) riding. The hookless design enhances tubeless compatibility, reducing the risk of pinch flats and providing improved sealant retention, giving riders more confidence on varied terrain.

Optimized Dimensions for Enhanced Ride

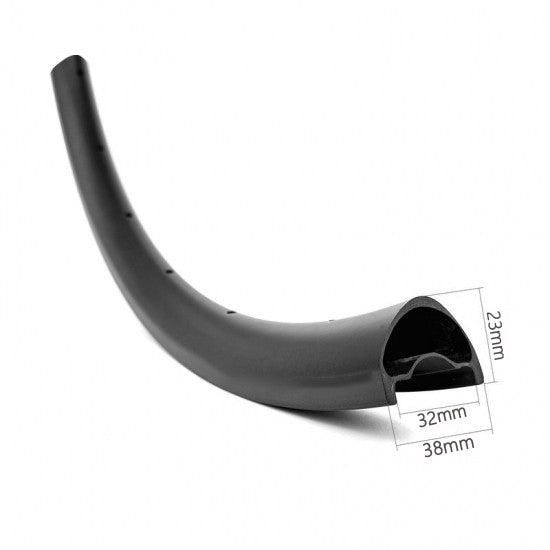

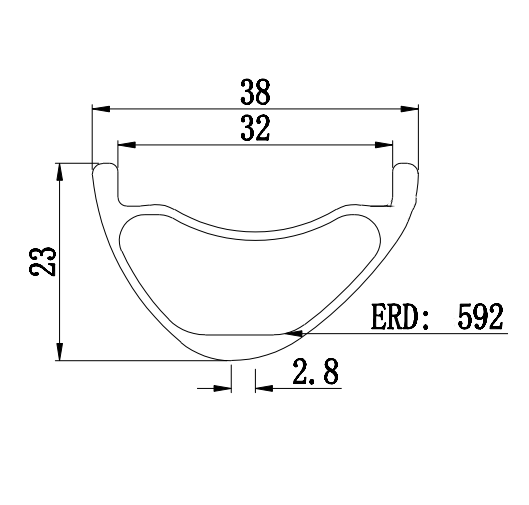

This rim comes with a 23mm external profile and a wide 32mm inner width, designed to maximize tire volume and stability. This width is ideal for supporting modern MTB tires, allowing better grip, cornering, and control on technical descents. The rim’s size perfectly supports 29-inch tires, which are favored for maintaining momentum and rolling speed, key for efficient trail riding and competitive cross-country performance.

Versatile Application and Performance Benefits

Designed to meet the needs of serious mountain bikers, this 29 inch asymmetric tubeless carbon rim excels in both cross-country and all-mountain disciplines. Its lightweight nature helps reduce rotational mass, improving acceleration and climbing efficiency. At the same time, the robust and reinforced construction guarantees reliability on rough and aggressive trails. Overall, this rim offers a balance of durability, performance, and weight savings, making it a prime choice for riders seeking high-quality, tubeless-ready MTB wheels.
