700C 40mm Tubeless Carbon Road Gravel Rim 32mm outer 26mm | Bola

700C 40mm Tubeless Carbon Road Gravel Rim 32mm outer 26mm | Bola

Regular price $340.00 USD
Regular price $400.00 USD Sale price $340.00 USD
Sale Sold out
Weave
Spoke QTY
Weight
Quantity

Size: 700C

The Bola 700C 40mm tubeless carbon road/gravel rim - the lightest road rim in the line, a 32mm external / 26mm internal Toray carbon rim for climbing and all-round builds.

Light on the climbs, calm in the gusts, still aero enough for the flat - the Bola 40mm road/gravel rim is the climber's friend in the Bola range. Forty millimetres of Toray carbon, 32mm external and 26mm internal, sold rim-only for builders who prize low rotational mass.

Buying Guide.

Weight tier - Extreme Light ~360g: the featherweight climber's pick - spins up instantly, for lighter riders.

Weight tier - Ultralight ~380g: the balanced middle - light enough to race, tough enough to train.

Weight tier - Superlight ~405g: the steady build - impact margin for windy training days.

Weight tier - Standard ~440g: the durable choice - extra grams for rough roads and heavier riders.

Max rider weight: rated to 105kg - check rider + gear before ordering.

Same-depth series: the 40mm asymmetric tubeless balances disc spoke tension; the 40mm U-shape tubeless is the narrower disc-brake road version.

Adjacent depth: the 50mm road/gravel rim adds flat-course aero.

Target Audience & Usage Notes.

Target audience.: Climbers, gran fondo riders and those in windy terrain.

Rim-only.

Seat beads with a compressor; respect 90 psi and 105kg.

Not for flat TT maximum-aero or aggressive gravel.

The Ride That Awaits.

Lace it to a climbing hub, run a 32-38c tubeless, and the first hill simply melts: the wheel spins up like a held breath, holds speed through the rollers, and stays calm when the wind squares up on you. Light enough to float, steady enough to trust. Free shipping, a 3-year rim warranty and crash-replacement discount - order today, climb tomorrow.

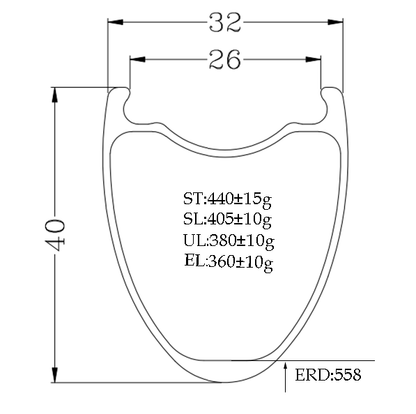

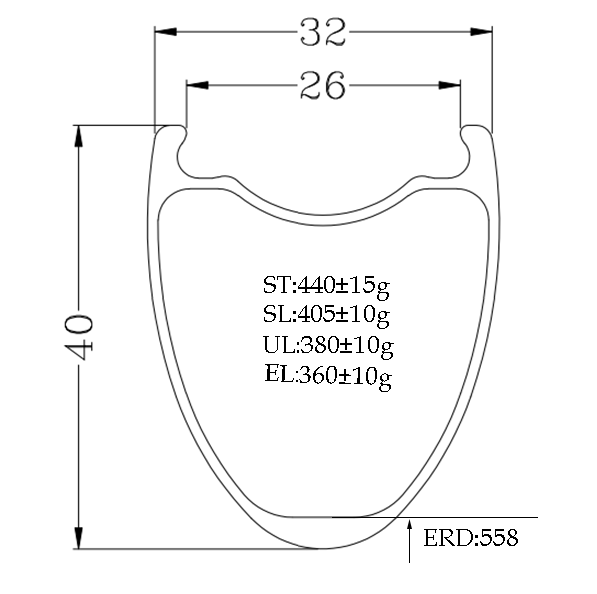

Specifications
Size: 700c
Material: Genius Toray carbon fiber
Rim Depth: 40mm
Bead Type: Hooked
Inner Width: 26mm
Outer Width: 32mm
ERD (Effective Rim Diameter): 558mm
Weight Tier: Extreme Light 360g / Ultralight 380g / Superlight 405g / Standard 440g (+/-10-15g)
Trade-offs & Considerations
Aero vs Crosswind: 40mm depth saves about 3.0W versus a 30mm rim at 40km/h; at 10° yaw the 32mm outer width calms the front end on open roads, while the shallower section still sails noticeably less than a 50mm rim in gusts.
Weight vs Stiffness: The Extreme Light tier (360g) saves about 80g versus the Standard tier (440g) at the same 40mm depth (±5g); lateral stiffness holds within 4% across tiers, so the lightest layup keeps the same rim bed and spoke interface.
Tire-Type Trade-off: The hooked bead runs clincher or tubeless tyres from about 28mm up to 48mm and tolerates higher pressure than hookless designs; tubeless lowers rolling resistance and pinch-flat risk, but needs tape, valve and sealant to seal the bed.
Sourcing & Delivery Trade-off: Stock drilling ships in 1–3 business days at $340; a custom spoke-hole count, valve bore or decals add 7–15 business days and roughly a $40–80 premium.
Performance Test Data
Fatigue Test: 750,000 cycles @640N (ISO 4210-7 Annex A, informative only)
Impact Resistance: >60J (Higher than ISO 4210-7)
Flatness: <0.25mm (internal QC)
Roundness: <0.3mm (internal QC)
Max Spoke Tension: >350 kgf (internal QC, spoke breaking tension)
Ultimate Strength: >200 kgf (internal QC, static spoke-hole point load)
Dynamic Equilibrium: <3g (internal QC)
Radial Stiffness: 62–74 N/mm (internal lab)
Lateral Stiffness: 8–13 N/mm
Max System Weight: 105kg
Recommended Use Cases
Road-Plus / Light Gravel Build: The 26mm internal bed (32mm outer) is optimised for tubeless 31-48mm tyres (28mm minimum) - a road-plus rim that smooths rough tarmac and light gravel.
All-Road Build: The 40mm depth saves about 3.0W versus a 30mm rim at 40 km/h; the 32mm outer width calms the front end on open roads, sails less than a 50mm rim in gusts.
Light Build: The Extreme Light 360g tier saves about 80g versus the Standard 440g rim at the same 40mm depth, within the 105kg system limit.
Compatibility
Frame: 700C (ISO 622) road/gravel frames; brake type hub-dependent
Tire Type: Tubeless-ready clincher
Tire Width: 31-48mm (min 28mm)
Valve: 6.5mm Presta
Brake: Rim-only; disc or rim brake hub per build
How It Compares
ModelWeightDepthWidthPrice
700C 40mm Rim 32mm Extreme Light 360g / Ultralight 380g / Superlight 405g / Standard 440g (+/-10-15g) 40mm 32mm See store
Model A (adapted reference) ~430g 50mm 28mm $1,399
Model B (adapted reference) ~420g 50mm 30mm $389
Model C (adapted reference) ~430g 50mm 27mm $249
FAQ
What spoke drillings are available, and which brake type is this rim rated for?
Spoke drillings and brake rating depend on the build option, selectable at checkout. If you plan to lace your own wheel, confirm the drilling and brake type with Bola before ordering so the rim matches your hub and frame.
What is the maximum spoke tension for this rim?
Drive-side / disc-side max tension is 130–140 kgf, with the non-drive side adapted to match; spoke holes are locally reinforced inside the carbon layup to prevent pull-out cracking.
Will the rim crack on rock gardens or bottom-outs at low pressure?
The rim bead area uses a thickened impact-reinforced layer; impact testing passes >60J extreme impacts (above the ISO 30J standard). Inner widths of 26mm accept wider tyres, which deform to absorb shock at low pressure.
What tyres can I mount on this rim, and what pressure should I run?
The 26mm inner width is optimised for tubeless tyres from 31mm to 48mm, with a 28mm minimum — road-plus and light gravel.
Will I really pay no customs or VAT for delivery to the US and EU?
Yes. The Economy channel ships DDP — duties and VAT are fully prepaid by us, cleared in advance, delivered to your door with no extra payment to customs or the courier.
Warranty & Shipping
Warranty Period: 3 years
Crash Replacement: 30% discount on replacement parts within 1 year of the original purchase date
Processing Time: In stock: 1–3 business days · Out of stock or custom order: 7–15 business days
Shipping method: FedEx/UPS/DPD/EMS Economy (free with duties & VAT included in USA & EU) · Expedited option available
Estimated Delivery: Economy 7–20 business days · Expedited 3–7 business days, customs clearance excluded
