Bola EXP 45R Carbon Wheelset DT Swiss 240s Road

Bola EXP 45R Carbon Wheelset DT Swiss 240s Road

1 total reviews

Regular price $999.00 USD
Regular price $1,250.00 USD Sale price $999.00 USD
Sale Sold out
Rim Width(Ext/Int)
Freehub Body
Decal
Quantity

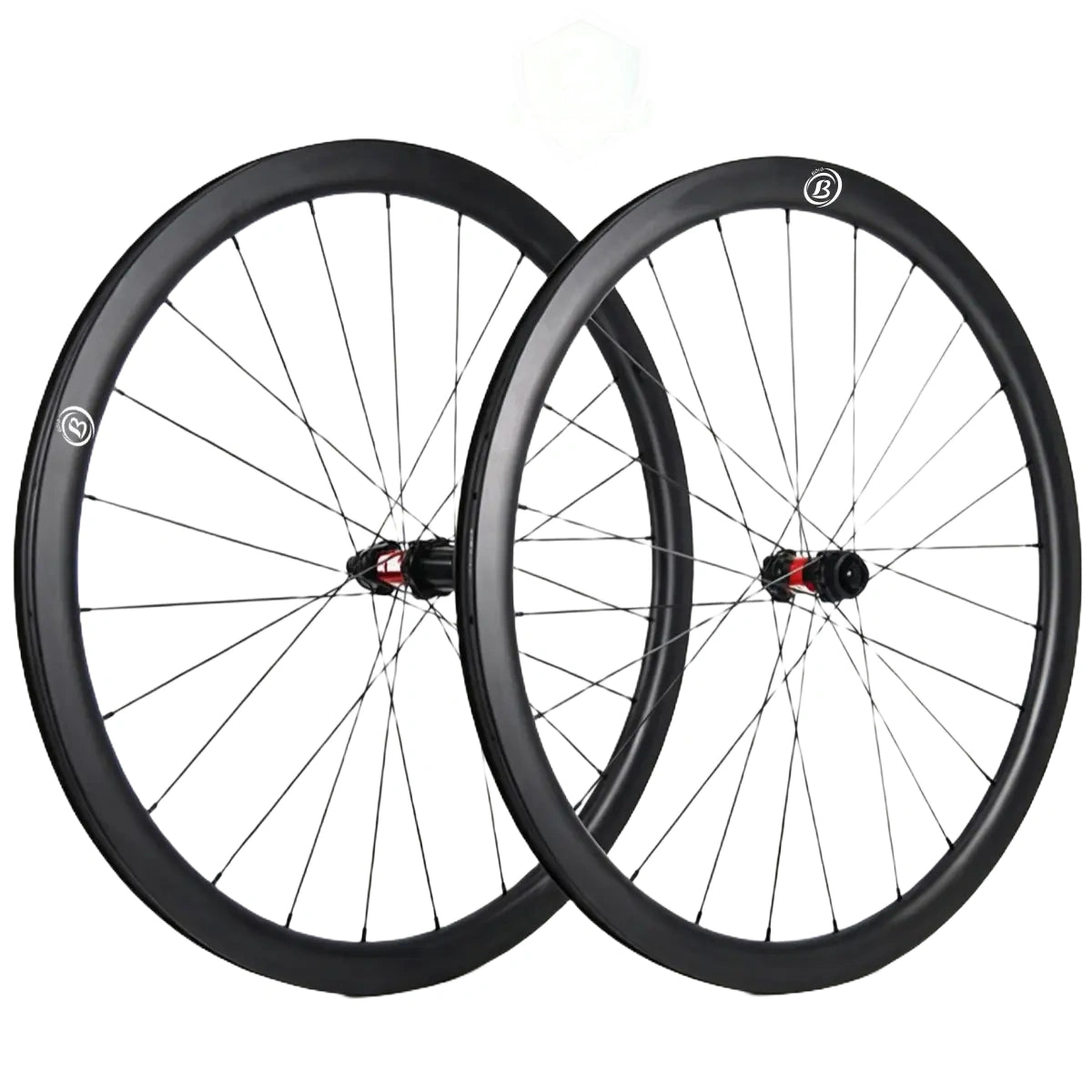

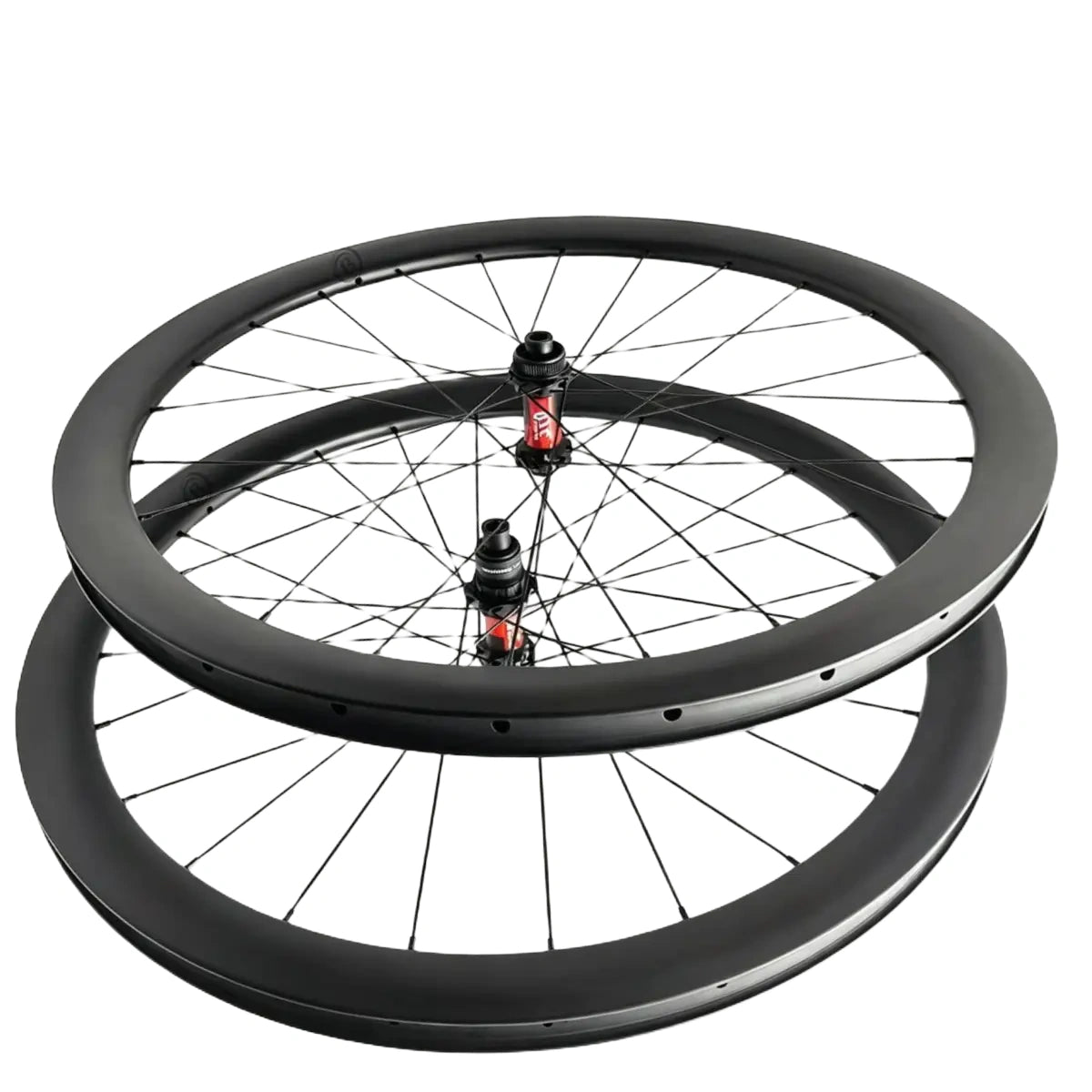

The Bola EXP 45R is a 45mm U-shaped T1000 carbon disc wheelset on DT Swiss 240s hubs with CX-Ray spokes, 1300g, for lightweight road-and-gravel endurance.

The U-shaped endurance blade: DT Swiss reliability, 1300g. The Bola EXP 45R takes a 45mm U-shaped T1000 rim and wraps it around genuine DT Swiss 240s hubs with Sapim CX-Ray spokes — remarkably light for a DT Swiss-equipped disc wheelset, engineered for riders who want proven hub durability without sacrificing climbing acceleration.

Buying Guide.

Internal width - 21mm: 28c at 60-80 PSI for smooth tarmac.

Internal width - 24mm: 28-32c at 55-75 PSI for rolling road.

Internal width - 26mm: 32c at 50-60 PSI for chipseal and light gravel.

Max rider weight: rated to 110kg - check rider plus gear.

Same-depth series: the CE 45R (~$1111) adds foil carbon spokes and the EXT 45R (~$1111) goes ceramic and lighter; the EXP 45R keeps a genuine DT Swiss 240s at the lightest build.

Adjacent depth: the EXP 40R below climbs easier and the EXP 50R above adds aero - choose the 45R for the balance.

Target Audience & Usage Notes.

Disc-brake road and gravel frames, 12x100/12x142 thru-axle.

Max system weight 110kg.

Not for off-road mountain biking or heavy touring.

The Ride That Awaits.

Lift it onto your shoulder and the featherweight feel of it speaks first; on the road the U-shaped rim slices the drags without the knife-edge tremor of deeper wheels. You spin up the climb light, hold the paceline true, and the DT Swiss hub never complains. Free shipping and a 3-year rim / 2-year wheelset warranty mean waiting is the only hard part.

Specifications
Size: 700c
Carbon Grade: Toray T1000 ultra-high-modulus carbon fiber
Rim Depth: 45mm (U-profile)
Bead Type: Hooked / Hookless
Inner Rim Width: 21/24/26mm
Outer Rim Width: 28-32mm

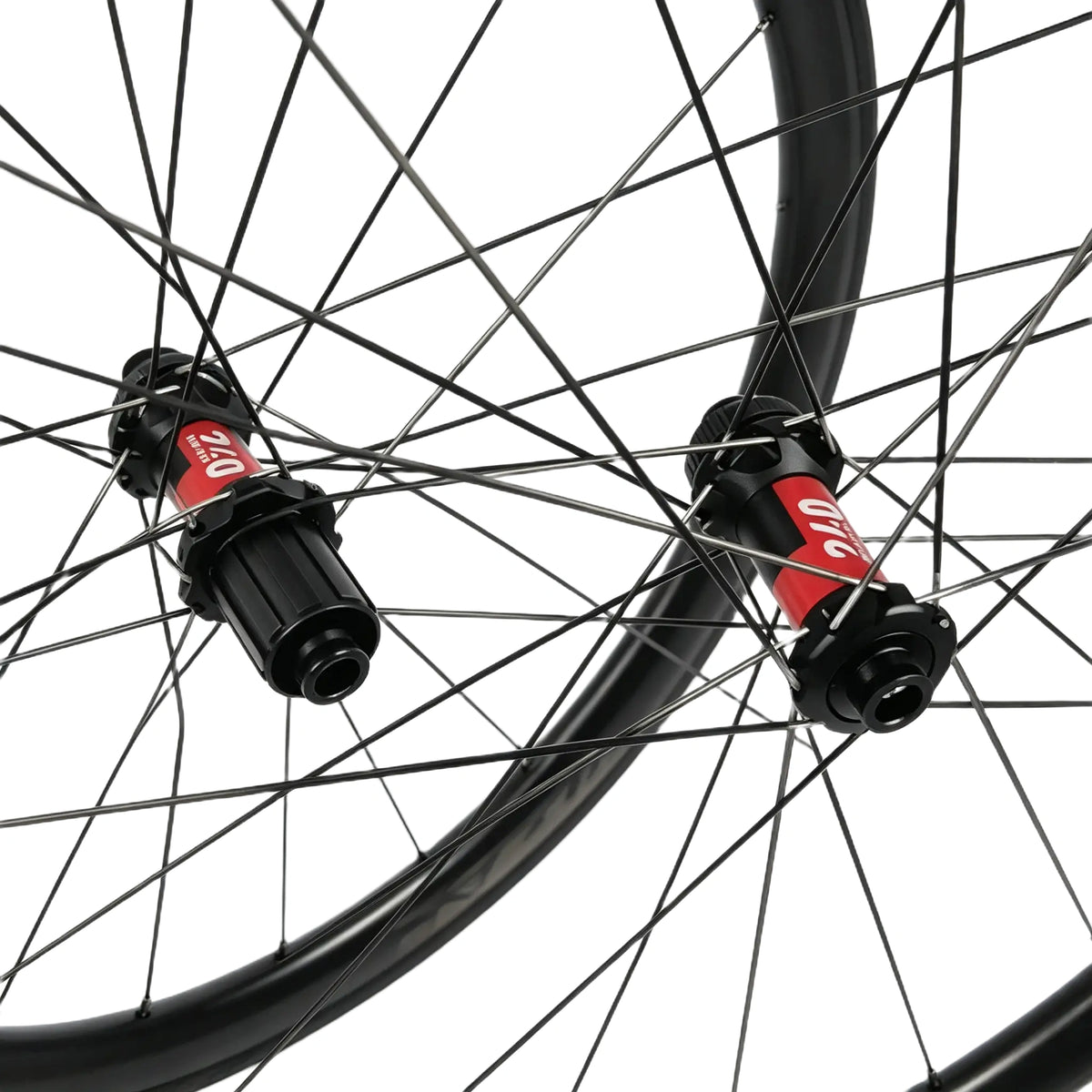

Hub Model: DT Swiss 240 36T
Spoke: Sapim CX Ray, 24/24, 2x Straight pull
Bearing Type: Ceramic bearing
Complete Wheelset Weight: 1300g (tape & valve excluded, ±2% tolerance)
Accessories: Tape, valve and spare spokes
Trade-offs & Considerations
Aero vs Crosswind: The U-shaped 45mm rim gains about 4.0W versus a 28mm rim at 40km/h and 10 deg yaw, with the blunt U-profile calming crosswind steer versus a sharp 50mm V rim; the 40R trades about 1.0W for slightly calmer handling.
Weight vs Stiffness: At 1300g the T1000 U-profile is about 100g below an equivalent 45mm round rim (plus or minus 5g) while lateral stiffness stays within 3%; the deeper section trades a little climbing ease for aero and stability.
Tire-Type Trade-off: The 21/24/26mm internal channels run 25-50c tubeless; 21mm for 28c at 60-80 PSI, 24-26mm for 32mm gravel at 50-60 PSI, trading peak pressure for comfort.
Sourcing & Delivery Trade-off: Stock ships in 1-3 business days at $999; custom lacing or decals add 7-15 business days and about a $100-150 premium.
Config Ladder: Hyper carbon spokes (EXT spec) save about 130g for roughly +$110 and add about 5 days; ceramic bearings are already fitted, and the 36T ratchet (about 10 deg) can be stepped to a 54T ratchet (about 6.7 deg).
Performance Test Data
Test Protocol: Identical across the range: fatigue 750,000 cycles @640N (ISO 4210-7 Annex A reference) impact >60J (above the ISO 4210-7 threshold) flatness <0.25 mm and roundness <0.3 mm max spoke tension >350 kgf dynamic balance <3 g. Values marked internal QC or factory assembly are our own measurements, not third-party certificates. Drive-side assembly tension >130 kgf.
Lateral Stiffness: 42–51 N/mm
Radial Stiffness: 122–136 N/mm (internal lab)
Ultimate Strength: >200 kgf (internal QC, static spoke-hole point load)
Max System Weight: 110 kg
Recommended Use Cases
Road Racing / Gran Fondo: The 45mm Toray T800 section at about 1280g with DT Swiss 240s and Sapim CX-Ray spokes is a balanced aero road build for races and long fondo days.
Time Trial / Fast Group Riding: 45mm sits between the calmer 40mm and the gustier 55mm, holding speed on rolling road stages against the clock and in fast groups.
All-Road / Light Gravel: The 21/24/26mm internal width options run 28-32c tubeless, so the set transitions from tarmac to light gravel without a wheel change.
Not Recommended For: Deep gravel with 40c-plus tyres - the bed is optimized for 28-32c road-plus volume.
Compatibility
Brake Standard: Disc brake, Center Lock rotor (140/160mm)
Axle: Front 12x100mm thru-axle; Rear 12x142mm thru-axle (QR with adapters)
Freehub: Shimano HG / SRAM XDR (select at checkout)
Tire: Tubeless-ready clincher, 25-50c
Frame: 700C road / gravel disc frame
How It Compares
ModelHubSpokeBearingWeightDepthWidthPrice
EXP 45R DT Swiss 240s Sapim CX-Ray Steel 1300g 45mm 21–26mm See store
Zipp 303 Firecrest ZR1 DB, 66T Sapim CX Sprint Steel cartridge 1408g 40mm 25mm ~$2,046/set
Hunt 44_46 Aerodynamicist HUNT ratchet Steel bladed Steel 1346g 44/46mm 22mm $1,479
Roval Rapide CL III Roval Light Steel, 24/24 Steel 1555g 51/48mm 21mm €1,449
Hunt 40 Carbon Disc HUNT alloy Steel bladed Steel 1433g 40mm 22mm $1,229
FAQ
How does this 45mm deep rim handle crosswinds on fast descents?
An optimised 45mm profile keeps steering torque predictable at 10°–15° yaw, so high-speed descents stay planted.
Do these rims accept standard clincher tyres, and what is the pressure limit on hookless?
Hooked rims fit standard clincher tyres directly, with or without tubes. For hookless rims, per ETRTO, tubeless tyres 28c and wider must not exceed 72.5 PSI (5.0 bar) to prevent unseating.
Are ceramic bearings durable in rain or rough conditions - do they need frequent service?
The bearings use dual-lip contact labyrinth dust/water seals. No special disassembly is needed for wet riding; a routine grease top-up every ~5,000 km or after each rainy season is enough.
Which tyres should I run, and at what pressure?
On the 21mm bed run 28mm at 60-80 PSI; on the 24-26mm bed run 32mm gravel at 50-60 PSI. The bed accepts 25-50c.
Will I really pay no customs or VAT for delivery to the US and EU?
Yes. The Economy channel ships DDP - duties and VAT are fully prepaid by us, cleared in advance, delivered to your door with no extra payment to customs or the courier.
Warranty & Shipping
Warranty Period: 2 years
Category Exclusions: Hub bearing and freehub ratchet wear are not covered (serviceable consumables).
Crash Replacement: 30% discount on replacement parts within 1 year of the original purchase date
Processing Time: In stock: 1–3 business days · Out of stock or custom order: 7–15 business days
Shipping method: FedEx/UPS/DPD/EMS Economy (free with duties & VAT included in USA & EU) · Expedited option available
Estimated Delivery: Economy 7–20 business days · Expedited 3–7 business days, customs clearance excluded
