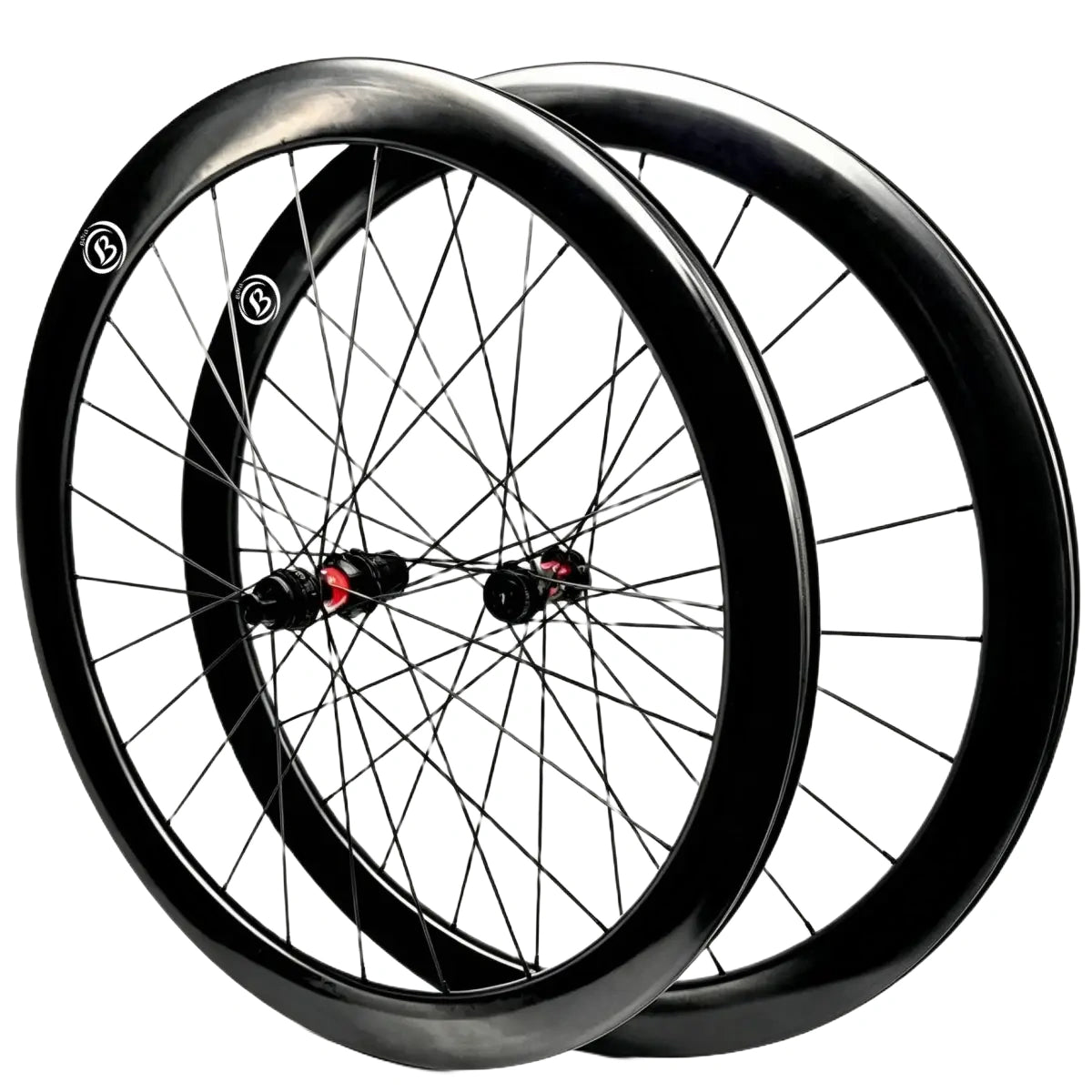

Bola EXP 50R DT Swiss 240s Carbon Disc Wheelset 700C

Bola EXP 50R DT Swiss 240s Carbon Disc Wheelset 700C

3 total reviews

Regular price $999.00 USD
Regular price $1,150.00 USD Sale price $999.00 USD
Sale Sold out
Rim Width(Ext/Int)
Freehub Body
Decal
Quantity

The Bola EXP 50R is a 50mm T1000 aero road disc wheelset on DT Swiss 240s hubs with CX-Ray spokes, 1350g, for aero road and light gravel.

The aero road blade: DT Swiss power, 50mm depth. The Bola EXP 50R pairs a 50mm T1000 rim (28-32mm external, 21-26mm internal) with genuine DT Swiss 240s hubs and Sapim CX-Ray spokes — a dependable aero road wheelset that bridges to light gravel via tubeless-ready wide internal widths.

Buying Guide.

Internal width - 21mm: 28c at 70-80 PSI for smooth tarmac.

Internal width - 24mm: 28-32c at 65-78 PSI for rolling road.

Internal width - 26mm: 32c at 40-50 PSI for light gravel.

Max rider weight: rated to 120kg - the highest in EXP, suiting heavier builds.

Same-depth series: the PRO 50R (~$999) is lighter with ceramic bearings and the PRM 50R (~$888) is the value pick; the EXP 50R leans on a genuine DT Swiss 240s hub.

Adjacent depth: the EXP 45R below is calmer in crosswinds - choose the 50R for aero on flats, the 45R for composure in gusts.

Target Audience & Usage Notes.

Disc-brake road and gravel frames, 12x100/12x142 thru-axle.

Max system weight 120kg (highest in EXP).

Not for heavy off-road or severe gravel.

The Ride That Awaits.

Flat-out on the open road, the rim cuts the air while the DT Swiss hub clicks a steady rhythm between your efforts. You hold the bars, the group drags behind, and the rough cut-through softens when the tarmac ends. Free shipping and a 3-year rim / 2-year wheelset warranty mean the only regret would be delay.

Specifications
Size: 700c
Carbon Grade: Toray T1000 ultra-high-modulus carbon fiber
Rim Depth: 50mm
Bead Type: Hooked / Hookless
Inner Rim Width: 21/24/26mm
Outer Rim Width: 28-32mm

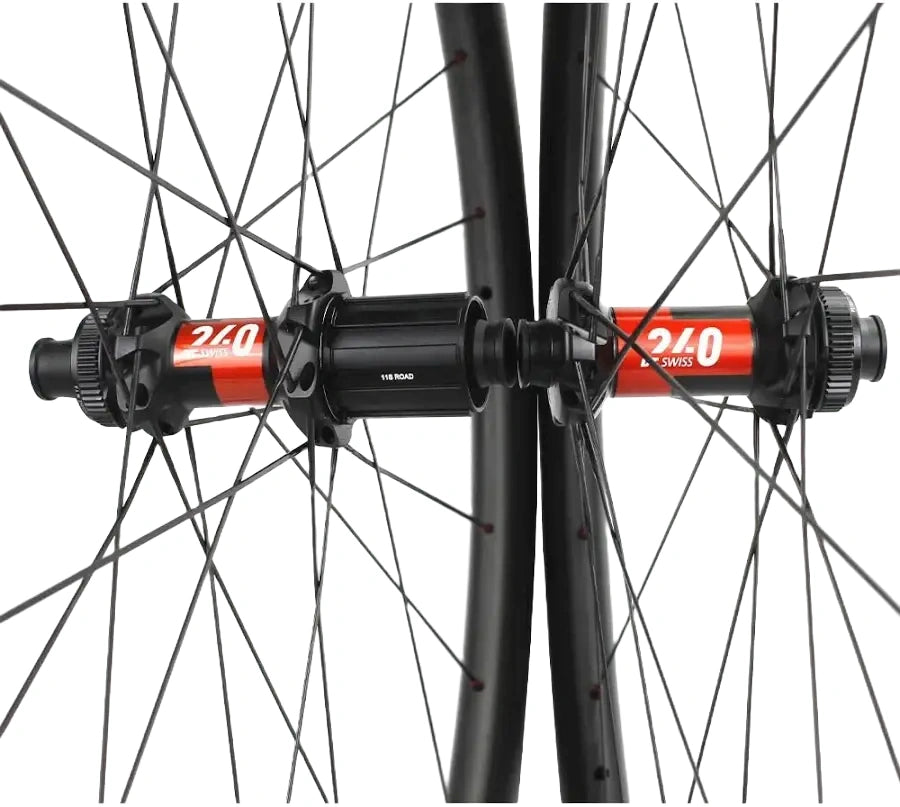

Hub Model: DT Swiss 240 36T
Spoke: Sapim CX Ray, 24/24, 2x Straight pull
Bearing Type: Ceramic bearing
Complete Wheelset Weight: 1350g (tape & valve excluded, ±2% tolerance)
Accessories: Tape, valve and spare spokes
Trade-offs & Considerations
Aero vs Crosswind: A 50mm aero rim saves about 5.0W versus a 35mm rim at 40km/h and 10 deg yaw, but crosswind steering is noticeably busier than the 40R; choosing 40R gives up about 1.5W for calmer handling.
Weight vs Stiffness: At 1350g the narrow 21-26mm internal bed keeps the set about 100g below a wide gravel 50mm (plus or minus 5g), with lateral stiffness within 3%; the deeper rim trades a little climbing ease for aero.
Tire-Type Trade-off: The 21/24/26mm internal channels run 25-50c tubeless; 21mm for 28c at 70-80 PSI, 26mm for gravel at 40-50 PSI.
Sourcing & Delivery Trade-off: Stock ships in 1-3 business days at $999; custom adds 7-15 business days and about a $100-150 premium.
Config Ladder: Hyper carbon spokes (EXT spec) save about 180g for roughly +$110 and add about 5 days; ceramic bearings are already fitted, and the 36T ratchet (about 10 deg) can be stepped to a 54T ratchet (about 6.7 deg).
Performance Test Data
Test Protocol: Identical across the range: fatigue 750,000 cycles @640N (ISO 4210-7 Annex A reference) impact >60J (above the ISO 4210-7 threshold) flatness <0.25 mm and roundness <0.3 mm max spoke tension >350 kgf dynamic balance <3 g. Values marked internal QC or factory assembly are our own measurements, not third-party certificates. Drive-side assembly tension >130 kgf.
Lateral Stiffness: 42–51 N/mm
Radial Stiffness: 122–136 N/mm (internal lab)
Ultimate Strength: >300 kgf (internal QC, static spoke-hole point load)
Max System Weight: 120 kg
Recommended Use Cases
Road Racing: The 50mm T800 section saves aero watts at 40 km/h; laced with Sapim CX-Ray spokes to a DT Swiss 240s hub at 1350g, it is a fast disc build for flat and rolling race stages.
Gran Fondo / All-Road Disc: The 24mm internal bed (30mm outer) runs 28-32c tubeless for all-day comfort, and the global-service DT Swiss 240s hub takes HG/XDR/N3W freehub bodies.
Light Gravel / Mixed Surface: The wide 30mm outer profile and tubeless setup also cover light gravel and broken tarmac when you want one disc wheelset for mixed routes, within the 120kg system limit.
Compatibility
Brake Standard: Disc brake, Center Lock rotor (140/160mm)
Axle: Front 12x100mm thru-axle; Rear 12x142mm thru-axle (QR with adapters)
Freehub: Shimano HG / SRAM XDR (select at checkout)
Tire: Tubeless-ready clincher, 25-50c
Frame: 700C road / light-gravel disc frame
How It Compares
ModelHubSpokeBearingWeightDepthWidthPrice
EXP 50R DT Swiss 240s Sapim CX-Ray Steel 1350g 50mm 30/24mm See store
Zipp 404 Firecrest ZR1 DB, 66T Sapim CX Sprint Steel cartridge 1559g 58mm 23mm ~$2,026/set
DT Swiss ARC 1100 DICUT DT Swiss 180 DICUT DT Aero Comp — 1299g 55mm — $3,218
Hunt 50 Carbon Disc HUNT alloy Steel bladed Steel 1464g 50mm 22mm $1,249
Roval Rapide CL II Roval Light Steel, 24/24 Steel 1590g 51/60mm 21mm €1,355
FAQ
How does this 50mm deep rim handle crosswinds on fast descents?
An optimised 50mm profile keeps steering torque predictable at 10°–15° yaw, so high-speed descents stay planted.
Do these rims accept standard clincher tyres, and what is the pressure limit on hookless?
Hooked rims fit standard clincher tyres directly, with or without tubes. For hookless rims, per ETRTO, tubeless tyres 28c and wider must not exceed 72.5 PSI (5.0 bar) to prevent unseating.
Are ceramic bearings durable in rain or rough conditions - do they need frequent service?
The bearings use dual-lip contact labyrinth dust/water seals. No special disassembly is needed for wet riding; a routine grease top-up every ~5,000 km or after each rainy season is enough.
Which tyres should I run, and at what pressure?
On the 21mm bed run 28mm road at 70-80 PSI; on the 24-26mm bed run gravel at 40-50 PSI. Tubeless recommended.
Will I really pay no customs or VAT for delivery to the US and EU?
Yes. The Economy channel ships DDP - duties and VAT are fully prepaid by us, cleared in advance, delivered to your door with no extra payment to customs or the courier.
Warranty & Shipping
Warranty Period: 2 years
Category Exclusions: Hub bearing and freehub ratchet wear are not covered (serviceable consumables).
Crash Replacement: 30% discount on replacement parts within 1 year of the original purchase date
Processing Time: In stock: 1–3 business days · Out of stock or custom order: 7–15 business days
Shipping method: FedEx/UPS/DPD/EMS Economy (free with duties & VAT included in USA & EU) · Expedited option available
Estimated Delivery: Economy 7–20 business days · Expedited 3–7 business days, customs clearance excluded
