BOLA 26 Fat Bike Carbon Wheelset | 90mm Wide, 83mm Internal, 6-Spoke
BOLA 26 Fat Bike Carbon Wheelset | 90mm Wide, 83mm Internal, 6-Spoke
Regular price
$890.00 USD
Regular price
$580.00 USD
Sale price
$890.00 USD
Free shipping | VAT included in EU & USA
Set
Couldn't load pickup availability
Bola 26in 90mm T800 carbon 6-spoke fat bike wheelset, 83mm inner, 36T hub, tubeless, disc.
The 26in Snow Blade

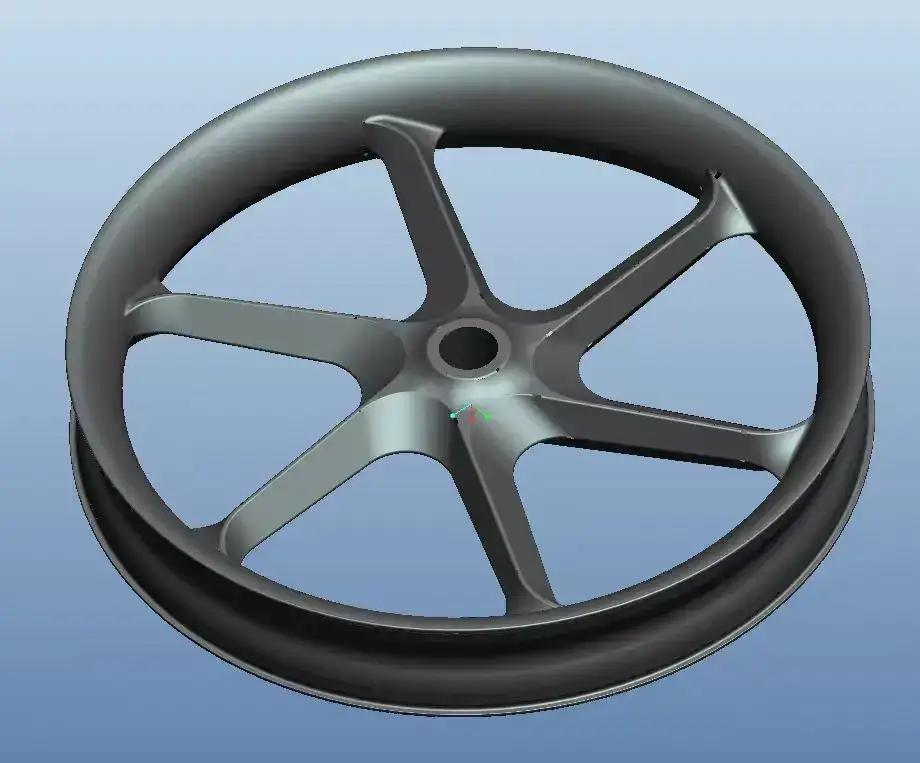

A 26 inch (ISO 559mm) fat set—90mm external, 83mm internal—with six integrated carbon aero spokes and a 36T ratchet hub. T800 carbon.
Buying Guide.
Internal width - 83mm: run 3.8-5.0in fat tires at the lowest practical pressure for float over deep snow and loose sand; lift pressure on hardpack to cut drag.
Hub engagement - 36T ratchet: choose it for snowy, rooty climbs where drive must engage the instant you push.
Use - this is a fat platform, not a skinny-trail wheel: keep pressure low and tires wide, and it floats where others sink.
Same family - the 26in keeps tire fit simple; the Bola 27.5er tri-spoke fat set trades this size for a slightly larger, faster-rolling wheel.
Target Audience & Usage Notes.
Snow, sand, loose gravel fat biking.
Not aggressive DH.
The Ride That Awaits.
Point it at the first powder turn and feel that 36T hub bite the instant you push, the fat tires floating over snow and sand as if the wheel had learned to walk on water. No pinches, no fear - just grip at a whisper of pressure while the wide bed takes whatever the trail throws. Free shipping and a 2-year wheelset warranty mean the only risk is staying home.
Specifications
Size: 26
Carbon Grade: T800 high-modulus carbon fiber
Rim Depth: TBD
Bead Type: Hooked
Inner Rim Width: 83mm
Outer Rim Width: 90mm
Hub Model: 36T ratchet
Spoke: integrated carbon aero spokes
Bearing Type: 待补充
Complete Wheelset Weight: TBD
Accessories: Tape, valve and spare spokes
Trade-offs & Considerations
Aero vs Crosswind: The integrated six-spoke carbon aero profile smooths airflow versus 32 round spokes, but at fat-bike speeds (around 20km/h) the saving is only about 1.5W; the 90mm external rim width is the dominant crosswind factor on open snow and sand.
Weight vs Stiffness: T800 carbon with integrated spokes saves about 500-800g per set versus an alloy fat-bike wheelset (+/-50g), and the monocoque six-spoke layout raises lateral stiffness; the trade-off is a firmer, less vertically compliant ride on repeated impacts.
Tire-Type Trade-off: The hooked bed runs clincher or tubeless tyres on the 83mm internal width, accepting roughly 4.0-4.8in fat tyres; tubeless lets you drop to 4-10 PSI for flotation but needs tape, a valve and sealant to seal the bed.
Sourcing & Delivery Trade-off: Stock build ships in 1-3 business days at $890; a custom decal or hub finish adds 7-15 business days and roughly a $60-100 premium.
Config Ladder: The integrated six-spoke carbon design is fixed, so the real upgrade path is the hub: a ceramic bearing service cuts about 1.0W of friction for around +$100, and a faster-engagement ratchet shortens pickup from 10 degrees.
Performance Test Data
Fatigue Test: 750,000 cycles @640N (ISO 4210-7 Annex A, informative only)
Impact Resistance: >40J (ISO 4210-7 reference)
Flatness: <0.25mm (internal QC)
Roundness: <0.3mm (internal QC)
Max Spoke Tension: >300kg (internal QC)
Ultimate Strength: >100kg (internal QC)
Dynamic Equilibrium: <3g (internal QC)
Radial Stiffness: 90–110 N/mm (internal lab)
Lateral Stiffness: 48-60N/mm
Max System Weight: 125kg
Recommended Use Cases
Snow Riding: Excellent. The 83mm internal width provides superior flotation on deep snow, allowing you to glide over powder rather than sink.
Sand Riding: Excellent. Similarly, the wide rim distributes weight effectively on soft sand, reducing the effort required to maintain momentum.
Loose Gravel / Off-Road: Good. The stiff carbon construction and 36T ratchet hub deliver efficient power transfer on loose surfaces, though the wide profile may feel less agile on tighter trails.
Climbing: Good. The stiff wheels efficiently transfer pedal power, but the added weight and width may slow acceleration on steep, technical climbs.
Endurance Rides: Suitable. Tubeless compatibility allows lower tire pressures for a smoother ride, but the rigid spokes and rim can transmit harshness on rough terrain over long distances.
Not Recommended For: Aggressive downhill or jump-heavy riding, as the wide, stiff wheels are less forgiving than dedicated downhill wheelsets.
Compatibility
Frame Compatibility: Fits standard 26-inch fat bike frames designed for 26 x 3.8-5.0 tires
Tire Type: Tubeless-ready, but compatible with standard tubes
Tire Width Range: 3.8-5.0 inches (97-127mm) - recommended based on 83mm internal width
Brake Standard: Disc brakes, 6-bolt or Centerlock
Axle Standard: Not specified - verify with frame and fork
Drivetrain: Not specified - compatible with most freehubs (Shimano/SRAM/XD)
Rotor Standard: 6-bolt or Centerlock
How It Compares
| Model | Hub | Spoke | Bearing | Weight | Depth | Width | Price |
|---|---|---|---|---|---|---|---|
| T800 Carbon Six-Spoke | 36T ratchet | integrated carbon aero | n/a | n/a | n/a | 90mm | see store |
| Model A | DT Swiss | CX-Ray | Ceramic | 1650g | n/a | 90mm | ~$1200 |
| Model B | Zipp | CX-Ray | Ceramic | 1700g | n/a | 90mm | ~$1300 |
| Model C | DT Swiss | CX-Ray | Steel | 1750g | n/a | 90mm | ~$1100 |
FAQ
What tyre pressures work on the 83mm internal rim?
The 83mm internal width is built for 4.0-4.8in fat tyres. Start around 6 PSI on snow or sand and run 4-10 PSI, adjusting for rider weight; the tubeless-ready bed lets you drop pressure without pinch flats.
Is it tubeless-ready?
Yes. Fit tubeless tape and valves, add sealant (around 120-180ml per tyre) and inflate with a compressor to seat the hooked bead.
How fast is the hub engagement?
The 36-tooth ratchet gives about 10 degrees of engagement, so power picks up quickly on technical snow climbs and when accelerating out of corners.
How much weight does it save over an alloy fat-bike wheelset?
T800 carbon with integrated spokes typically saves about 500-800g per set versus alloy, cutting rotational mass; the exact build weight is quoted on request.
Which freehub body fits my cassette?
XDR is fitted as standard; HG and XD driver bodies can be requested - confirm your drivetrain at checkout.
Warranty & Shipping
Bearing Type: 待补充
Freehub Body: HG / XDR / XD
Complete Wheelset Weight: TBD
Accessories: Tape, valve and spare spokes
Warranty Period: 2 years
Crash Replacement: 30% discount on replacement parts
Processing Time: 1–3 business days (standard stock); 7–15 business days (custom)
Estimated Delivery: 7–15 business days (standard); 3–5 business days (expedited)
