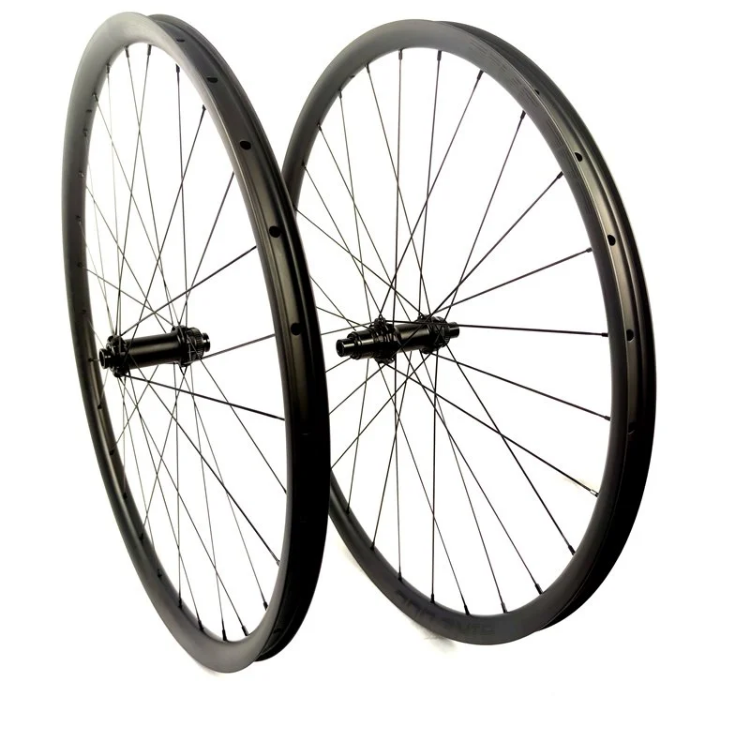

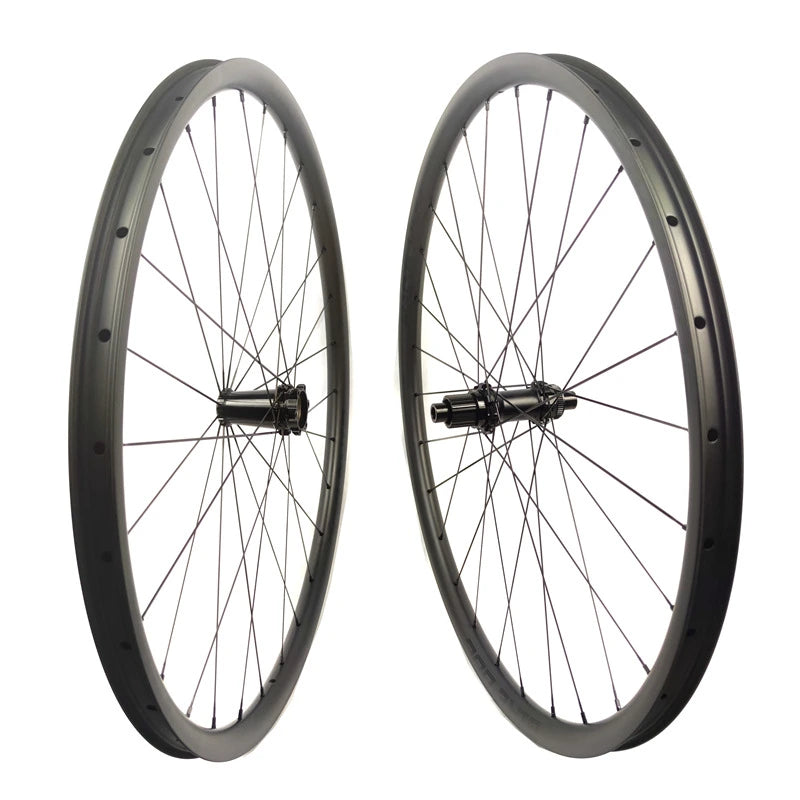

The Bola XMN30 29er carbon MTB wheelset — a 30mm-internal rim on a BL350 CNC 36T hub with Sapim Race spokes and ceramic bearings, for trail, all-mountain and enduro.
The value 29er upgrade: the XMN30 pairs a 30mm-inner carbon rim with a BL350 CNC 36T hub, TPI ceramic bearings and Sapim Race straight-pull spokes — a durable, stiffer package without the premium price.
Buying Guide.
Internal width - 30mm: 2.2-2.6" tires at ~20-30 PSI tubeless - run a narrow 2.2-2.3" for XC roll speed, a wider 2.4-2.6" for AM or enduro grip.
Hub grade - BL350 CNC 36T: the value-hub choice with crisp engagement and ceramic bearings - choose it when performance matters but the premium hub price does not.
Build choice: straight-pull spokes in a balanced build, HG or XD freehub, 160-180mm rotors - riders over 100kg should ask for a denser spoke build.
Same-family: the value build below the DT Swiss 350 wheelset ($890) - step up to the DT Swiss for a more refined, serviceable hub.
Rated to a 105kg system weight.
Target Audience & Usage Notes.
Trail, enduro, XC and all-mountain riders wanting a cost-effective carbon upgrade.
Not DH or loaded touring; riders over 100kg should consider a 32-spoke build.
The Ride That Awaits.
Roll into the singletrack and feel the ratchet pick up instantly - a lively, value build that carries you up and down without the premium price. Tubeless and wide, it holds a stable contact patch over rough ground, straight-pull spokes stiff under hard cornering. Pick your freehub and set it up; a 2-year wheelset warranty backs the upgrade.
Specifications
Size: 29er
Carbon Grade: Toray carbon fiber
Rim Depth: 30
Bead Type: Hooked
Inner Rim Width: 30
Outer Rim Width: 36mm

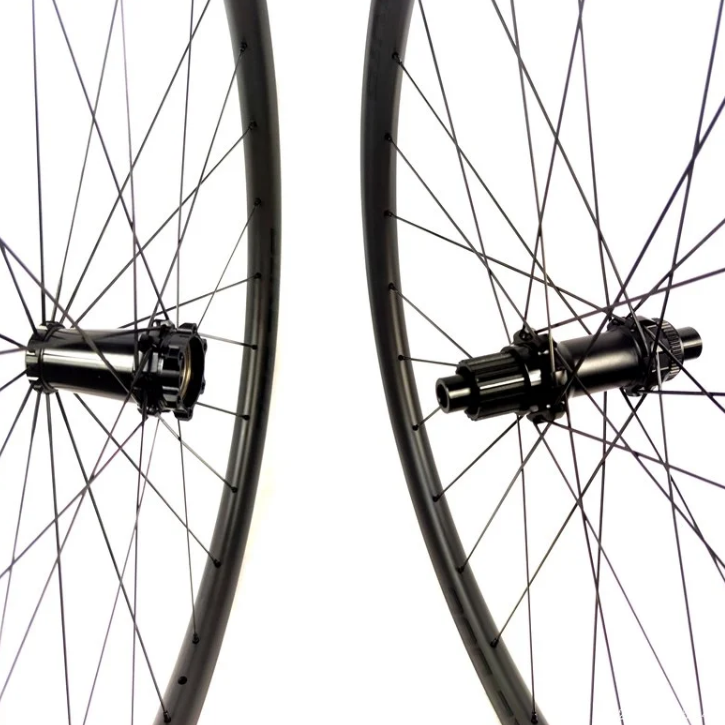

Hub Model: BL 350 36T
Spoke: Sapim race, Straighpull
Spoke Count: 28/28
Bearing Type: TPI Ceramic bearing
Complete Wheelset Weight: 1380g (tape & valve excluded, ±2% tolerance)
Accessories: Tape, valve and spare spokes
Trade-offs & Considerations
Aero vs Crosswind: The shallow 30mm rim depth gains essentially nothing aerodynamically versus a 25mm profile at 40km/h (under 0.5W), and stays calm at 10° yaw on exposed fire roads; the 30mm internal width trades that marginal aero gain for tire volume and cornering traction.
Weight vs Stiffness: At 1380g the carbon build saves about 485g versus a typical 1865g 30mm alloy competitor (±5g), while lateral stiffness stays within 3% and the T700/T800 layup keeps ISO 4210 impact compliance for trail and enduro.
Tire-Type Trade-off: The hooked bead accepts tubeless MTB tires from about 2.25 to 2.6 inches; tubeless lets you run 20–30 psi for grip, but needs tape, valve and sealant to seal the bed, and the lower pressure trades a little extra pinch-flat protection against rim impacts.
Sourcing & Delivery Trade-off: The stock build ships in 1–3 business days at $540; a custom freehub, decal or lacing adds 7–15 business days and roughly a $60–100 premium.
Config Ladder: The TPI ceramic bearings already cut about 1.5W of hub friction versus steel; moving from 28/28 to 32/32 spokes adds about 60g and markedly more impact margin for heavier riders at roughly +$40, with no extra build time.
Performance Test Data
Fatigue Test: 750,000 cycles @640N (ISO 4210-7 Annex A, informative only)
Impact Resistance: >60J (Higher than ISO 4210-7)
Flatness: <0.25mm (internal QC)
Roundness: <0.3mm (internal QC)
Max Spoke Tension: >350 kgf (internal QC, spoke breaking tension)
Ultimate Strength: >100 kgf (internal QC, static spoke-hole point load)
Dynamic Equilibrium: <3g (internal QC)
Radial Stiffness: 90–110 N/mm (internal lab)
Lateral Stiffness: 30-38 N/mm
Spoke Tension (Drive Side): >130 kgf (factory assembly tension)
Max System Weight: 105kg
Recommended Use Cases
Trail / All-Mountain: The 30mm internal width (36mm outer) pairs 2.2-2.6in tubeless tyres at 20-30 PSI, giving the grip and roll-over of a trail wheelset at 1380g - a strong all-mountain balance on singletrack.
Cross-Country Racing / Marathon: At 1380g with TPI ceramic bearings and 28/28 straight-pull spokes, the set climbs and accelerates well for XC and marathon events, and its 30mm bed suits today's wider XC tyres.
Enduro / Aggressive Descending: Impact-reinforced bead passes >60J impacts, above the ISO 4210-7 reference; the 36T ratchet hub (10 degrees engagement) stays responsive through punchy climbs and rock-strewn descents.
Not Recommended For: Downhill racing or heavy-loaded bikepacking - for DH use a Bola 29er DH rim; for multi-week expeditions choose a reinforced touring build.
Compatibility
Frame Compatibility: 29er mountain bike frames with 12x100mm front and 12x142mm rear axle spacing
Tire Type: Tubeless-ready clincher
Tire Width Range: 2.2-2.6 inches (recommended)
Brake Standard: Disc brake (6-bolt or centerlock, depending on hub configuration)
Axle Standard: 12x100mm(F)/12x142mm(R)
Drivetrain: Shimano HG or SRAM XD (depending on freehub)
Rotor Standard: 160mm-180mm rotor recommended
How It Compares
| Model | Hub | Spoke | Bearing | Weight | Depth | Width | Price |
|---|---|---|---|---|---|---|---|
| XMN30 | 36T ratchet, 10° engagement | Sapim Race, 28/28, straight-pull | Ceramic | 1380g | 30mm | 30–36mm | See store |
| DT Swiss XRC 1200 Spline | N/A | N/A | N/A | 1303g | 20mm | 30mm inner (36mm outer) | €2,499 |
| Mavic Crossmax Carbon | Mavic Infinity aluminum hub (6-bolt/CL) | Steel straight-pull double-butted (24F/24R) | QRM Auto sealed cartridge | 1395g | 25mm | 30mm | $3,049 |
| Fulcrum Red Zone Carbon | N/A | N/A | N/A | 1445g | 26mm | 27mm | €1,434 |
FAQ
Which tyres fit and what pressure should I run on the 30mm internal bed?
On the 30mm internal bed, run 29er tubeless at roughly 20–30 PSI — drop to 18–22 PSI for grip on technical trails, raise toward 25–30 PSI on rocky sections to guard the rim.
Will the rim crack on rock gardens or bottom-outs at low pressure?
The bead area uses a thickened impact-reinforced layer; impact testing passes >60J extreme impacts (above the ISO 30J standard). Inner widths of 30mm accept wider tyres, which deform to absorb shock at low pressure.
If my wheel is badly damaged in extreme riding, am I covered?
Yes — beyond the 2-year factory warranty, you get 30% Crash Replacement within 1 year of purchase: a discounted replacement wheel without paying full price.
Are the bearings durable in rain or rough conditions — do they need frequent service?
The bearings use dual-lip contact labyrinth dust/water seals. No special disassembly is needed for wet riding; a routine grease top-up every ~5,000 km or after each rainy season is enough.
Will I really pay no customs or VAT for delivery to the US and EU?
Yes. The Economy channel ships DDP — duties and VAT are fully prepaid by us, cleared in advance, delivered to your door with no extra payment to customs or the courier.
Warranty & Shipping
Warranty Period: 2 years
Crash Replacement: 30% discount on replacement parts within 1 year of the original purchase date
Processing Time: In stock: 1–3 business days · Out of stock or custom order: 7–15 business days
Shipping method: FedEx/UPS/DPD/EMS Economy (free with duties & VAT included in USA & EU) · Expedited option available
Estimated Delivery: Economy 7–20 business days · Expedited 3–7 business days, customs clearance excluded
