Bola 700C 31mm 5-Spoke Carbon Tubeless Triathlon Wheel

Bola 700C 31mm 5-Spoke Carbon Tubeless Triathlon Wheel

$650.00 USD
$750.00 USD $650.00 USD
Sale Sold out
Free shipping  |  VAT included in EU & USA
Weave
Disc brake Hub(CenterLock）

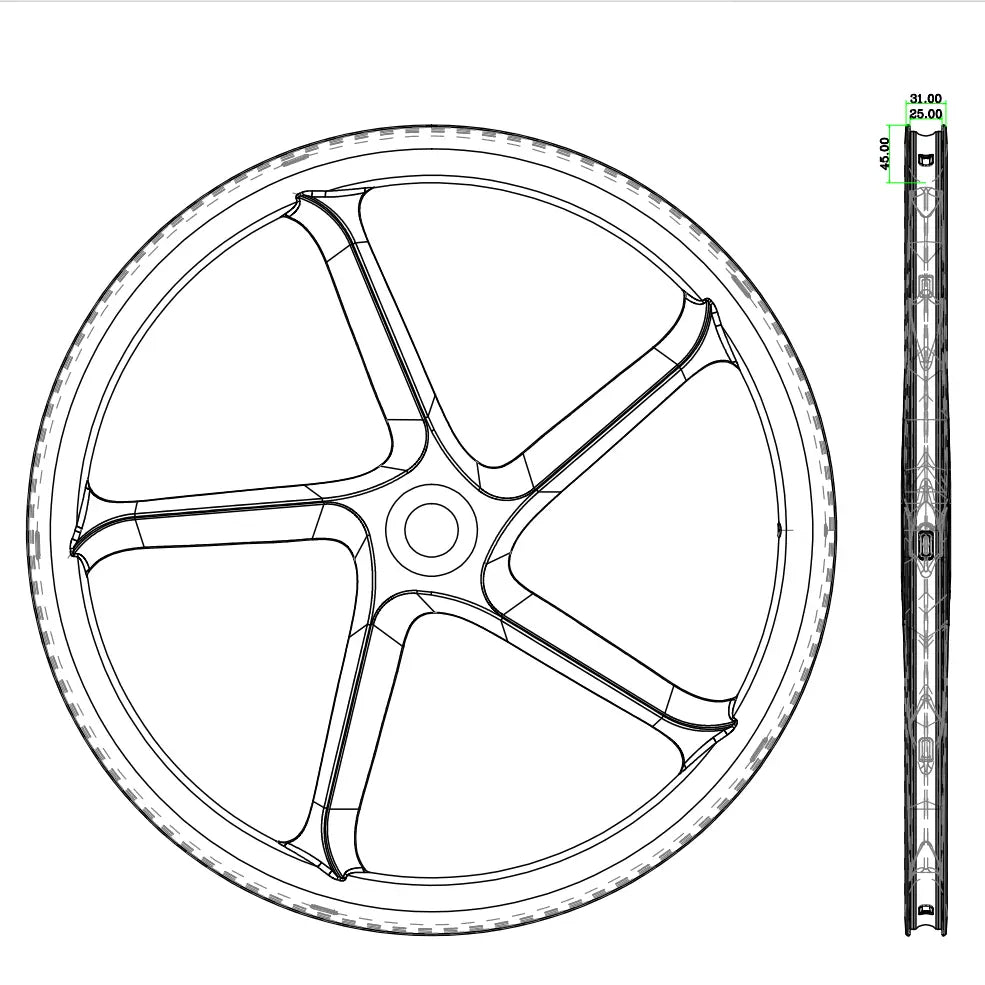

The Bola 700C 31mm 5-spoke carbon triathlon wheel - a 45mm-deep, 31mm-wide 5-spoke wheel with 25mm internal width and a 36T ratchet hub, for triathlon and TT.

Five blades wrapped around a wide, fast bed - a triathlon weapon that pairs aero five-spoke looks with the modern tyre volume long-course riders demand.

Buying Guide.

Racing role: a long-course triathlon front that blends five-blade aero with a wide, comfortable tyre bed.

Tyre choice: the wide internal bed suits 28-38mm rubber - run wider, lower-pressure tyres for Ironman comfort, narrower for pure speed.

Hub engagement: the quick ratchet hub transfers power instantly out of transitions and corners.

Family comparison: the 28mm 5-spoke wheel ($650) uses a narrower bed for classic race rubber; the 6-spoke wheelset ($650) is a complete wide aero pair.

Front wheel; tubeless tyres, respect the system weight limit.

Target Audience & Usage Notes.

long-course triathletes and TT riders wanting a wide, comfortable aero front.

Front wheel, 12x100, Center Lock disc (rim-brake option). 29-44mm tubeless tyres. 120kg system weight.

The Ride That Awaits.

Set up tubeless with a 30mm tyre it feels fast yet forgiving over long, rough triathlon roads; the wide bed lets you settle in and hold pace for hours.

Find your rhythm and disappear into it.

Free shipping and a 2-year wheelset warranty cover the race build.

Specifications
Size: 700c
Carbon Grade: 待补充
Rim Depth: 45mm
Bead Type: Hooked
Inner Rim Width: 25mm
Outer Rim Width: 31mm
Hub Model: TBD
Spoke: 待补充
Bearing Type: 待补充
Complete Wheelset Weight: TBD
Accessories: Tape, valve and spare spokes
Trade-offs & Considerations
Aero vs Crosswind: The molded five-spoke aero profile saves about 3.5W versus a 35mm laced wheel at 40km/h; at 10° yaw the solid spoke disc keeps steering linear in gusts, while the 45mm depth still carries a higher crosswind signature than a 35mm rim.
Weight vs Stiffness: The one-piece five-spoke structure is about 20% laterally stiffer than a 24-spoke laced build at the same 45mm depth (±5g in claimed weight); the fixed spoke layout removes spoke-by-spoke tension tuning in exchange for that stiffness.
Tire-Type Trade-off: The hooked bed mounts clincher and tubeless tyres from about 28c to 38c on the 25mm inner width; tubeless runs lower pressure and cuts rolling resistance but needs tape, valve and sealant, while clinchers use a removable inner tube.
Sourcing & Delivery Trade-off: Stock build ships in 1–3 business days at $650; custom decals or a front-only build add 7–15 business days and roughly a $50–100 premium over the standard listing.
Config Ladder: The molded five-spoke carbon structure is fixed, with no steel-to-carbon spoke upgrade ladder; the HG freehub is standard with XDR and XD selectable at checkout, and mixing a five-spoke front with a laced rear is the only position-level build option.
Performance Test Data
Fatigue Test: 750,000 cycles @640N (ISO 4210-7 Annex A, informative only)
Impact Resistance: >40J (ISO 4210-7 reference)
Flatness: <0.25mm (internal QC)
Roundness: <0.3mm (internal QC)
Max Spoke Tension: >300kg (internal QC)
Ultimate Strength: >100kg (internal QC)
Dynamic Equilibrium: <3g (internal QC)
Radial Stiffness: 90–110 N/mm (internal lab)
Lateral Stiffness: 38-48N/mm
Max System Weight: 120kg
Recommended Use Cases
Climbing / Hill Repeats: Good
Gran Fondo / Endurance: Good
Road Racing: Excellent
Sprinting / Criterium: Good
Training / Daily Riding: Suitable
Not Recommended For: Not recommended
Compatibility
Frame Compatibility: Road bike frames with 700c wheels
Tire Type: Tubeless-ready (also compatible with tubes)
Tire Width Range: 29-44mm
Brake Standard: Rim or Disc
Axle Standard: 12x100mm (Front)
Drivetrain: Shimano/SRAM road cassettes (for rear)
Rotor Standard: Not specified(Front)
How It Compares
ModelHubSpokeBearingWeightDepthWidthPrice
700C 5-Spoke Tri 36T ratchet, 10° engagement 5-spoke molded carbon Steel ~900g 45mm 31mm See store
Model A 36T ratchet, 10° engagement DT Aerolite Ceramic ~1515g 45mm 27mm $1,899
Model B 3-pawl, 24T, 15° engagement Aero steel Steel ~1510g 44mm 25mm $1,049
Model C 36T ratchet, 10° engagement Carbon Ceramic ~1450g 50mm 28mm $739
FAQ
Which tyres fit and what pressure should I run on the 25mm internal bed?
The 25mm internal bed suits 25–38mm tubeless tyres — 80–100 PSI for 25–28mm and 60–80 PSI for 30–38mm.
How does this deep rim handle crosswinds on descents?
An optimised profile keeps steering torque predictable at 10°–15° yaw, so high-speed descents stay planted.
Do these rims accept standard clincher tyres, and is there a pressure cap?
Hooked rims fit standard clincher tyres directly, no hookless pressure cap applies.
Can I swap the freehub to fit my cassette?
The hub is built on a DT Swiss 350 standard, so the freehub can be swapped to match Shimano or SRAM; note your groupset at checkout and we set it up.
Will I really pay no customs or VAT for delivery to the US and EU?
Yes. The Economy channel ships DDP — duties and VAT are fully prepaid by us, cleared in advance, delivered to your door with no extra payment to customs or the courier.
Warranty & Shipping
Warranty Period: 2 years
Crash Replacement: 30% discount on replacement parts
Processing Time: In stock: 1–3 business days · Out of stock or custom order: 7–15 business days
Shipping method: FedEx/UPS/DPD/EMS Economy (free with duties & VAT included in USA & EU) · Expedited option available
Estimated Delivery: Economy 7–20 business days · Expedited 3–7 business days, customs clearance excluded
