Bola 700C 55mm Tubeless Carbon Rim | 28mm Wide

Bola 700C 55mm Tubeless Carbon Rim | 28mm Wide

Regular price $310.00 USD
Regular price $350.00 USD Sale price $310.00 USD
Sale Sold out
Free shipping  |  VAT included in EU & USA
Weave
Spoke QTY
Weight
Set

The Bola 700C 55mm U-shape carbon tubeless rim - a 28mm-wide disc-brake aero rim with hooked or hookless bed for aero road, breakaways and rolling terrain.

Breakaways and rolling efforts reward the Bola 55mm U-shape rim - a mid-deep aero platform that balances speed, tyre volume and strength. Fifty-five millimetres of carbon, 28mm wide, sold rim-only.

Buying Guide.

Weight tier - Extreme Light ~425g: the breakaway racer's pick - lightest end for rolling aero racing.

Weight tier - Ultralight ~445g: the balanced middle - the sweet spot for most all-round aero riders.

Weight tier - Superlight ~465g: the steady build - impact margin for a season of racing.

Weight tier - Standard ~515g: the durable daily choice for larger riders and rough roads.

Max rider weight: rated to 120kg - check rider + gear before ordering.

Same-depth series: the 55mm road rim is the wide-outer version; the 55mm asymmetric tubeless balances disc spoke tension; the 55mm tubular is the glued option.

Adjacent depth: the 45mm U-shape climbs better; the 60mm U-shape goes deeper.

Target Audience & Usage Notes.

Target audience.: Road racers and aero builders on disc.

Rim-only.

Hookless requires ETRTO-certified tyres at 72-87 psi; hooked supports up to 110 psi.

Respect 120kg.

Not for steep climbing.

The Ride That Awaits.

Build it around a disc road hub, seat a 28-32c tubeless, and feel the breakaway carry you: the U-profile glides over rolling terrain, stable in the wind, eager on the rises, the wheel answering every surge. This is the all-season aero road ride. Free shipping, a 3-year rim warranty and crash-replacement discount.

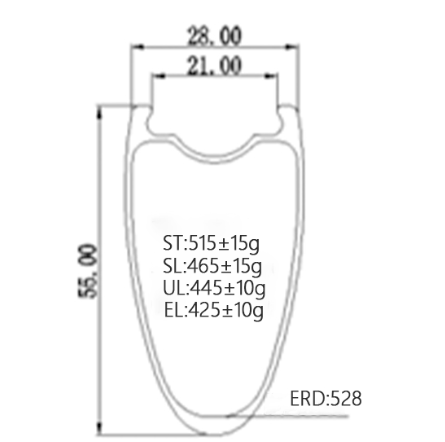

Specifications
Size: 700c
Material: Genius Toray carbon fiber
Rim Depth: 55mm
Bead Type: Hooked

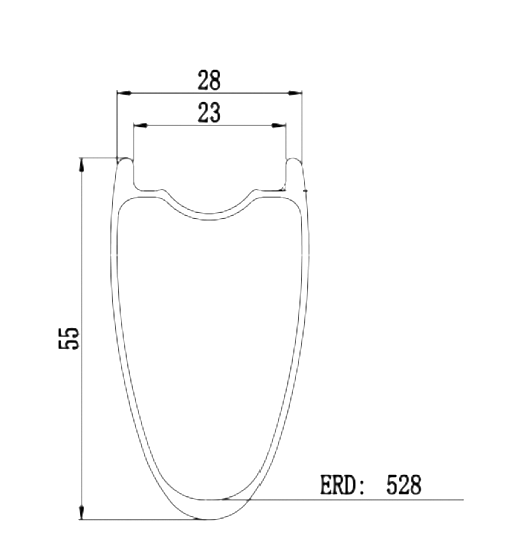

Inner Width: 21mm hooked / 23mm hookless
Outer Width: 28mm
ERD (Effective Rim Diameter): 528mm
Weight Tier: Extreme Light 425g / Ultralight 445g / Superlight 465g / Standard 515g (+/-10-15g)
Trade-offs & Considerations
Aero vs Crosswind: The 55mm depth saves about 5.5W versus a 35mm rim at 40km/h; at 10° yaw the deeper section shows a noticeably stronger crosswind push than a 45mm rim, suiting sheltered or straight courses more than exposed rolling terrain.
Weight vs Stiffness: The Extreme Light tier (425g) saves about 90g versus the Standard tier (515g) at the same 55mm depth (±5g); heavier Standard/Superlight layups are advised for riders over 100kg.
Tire-Type Trade-off: The hooked 21mm bead runs 25–40c up to 110 psi and accepts more tyre models; the hookless 23mm bed needs ETRTO hookless-certified tyres at 72–87 psi. Running 28–32c avoids the 'light bulb' profile mismatch.
Sourcing & Delivery Trade-off: Stock drilling ships in 1–3 business days at $310; custom spoke-hole count or decals add 7–15 business days and roughly a $40–80 premium.
Performance Test Data
Fatigue Test: 750,000 cycles @640N (ISO 4210-7 Annex A, informative only)
Impact Resistance: >40J (ISO 4210-7 reference)
Flatness: <0.25mm (internal QC)
Roundness: <0.3mm (internal QC)
Max Spoke Tension: >300kg (internal QC)
Ultimate Strength: >100kg (internal QC)
Dynamic Equilibrium: <3g (internal QC)
Radial Stiffness: 80–92 N/mm (internal lab)
Lateral Stiffness: 16–23 N/mm
Max System Weight: 120kg
Recommended Use Cases
Road Racing Builds: 2026 peloton standard is 28-30mm tubeless on wide rims (TdF 2026 avg ≈30mm); 55mm section suits 40+ km/h racing.
Gran Fondo / Endurance: Modern 2026 frames (Propel, SuperSix, S5) design around 30-32mm clearance; 21mm inner bed pairs 25-32mm tubeless per ETRTO 2026 guidance.
Wheel Building: Custom road builds with disc or rim hubs; UD carbon layup options for weight-conscious or durable builds.
Weight Tier Selection: Offered in weight tiers (120kg); lighter for climbing, heavier for training and impact margin.
Compatibility
Frame: 700C road frames with 100mm front / 130-142mm rear disc spacing
Tire Type: Clincher/tubeless (hooked or hookless)
Tire Width: 25-40c
Valve: 6.5mm Presta
Brake: Disc only - center-lock or 6-bolt rotor hub
How It Compares
FAQ
What tyre widths fit this rim?
25–40c; running 28–32c matches the 28mm outer width best and avoids the 'light bulb' profile.
What is the ERD?
528mm, with 20/20 holes and a 6.5mm valve hole. Use this for custom spoke-length calculation.
Hooked or hookless?
Hooked 21mm runs up to 110 psi and accepts more tyres; hookless 23mm needs ETRTO hookless-certified tyres at 72–87 psi.
Which weight tier should I pick?
Standard 515g or Superlight 465g if you are over 100kg; Ultralight 445g or Extreme Light 425g for lighter riders.
Is it disc-brake only?
Yes — no rim-brake braking surface; built for disc-brake road setups.
Warranty & Shipping
Warranty Period: 3 years
Crash Replacement: 30% discount on replacement parts
Processing Time: 1–3 business days (standard stock); 7–15 business days (custom)
Estimated Delivery: 7–15 business days (standard); 3–5 business days (expedited)
